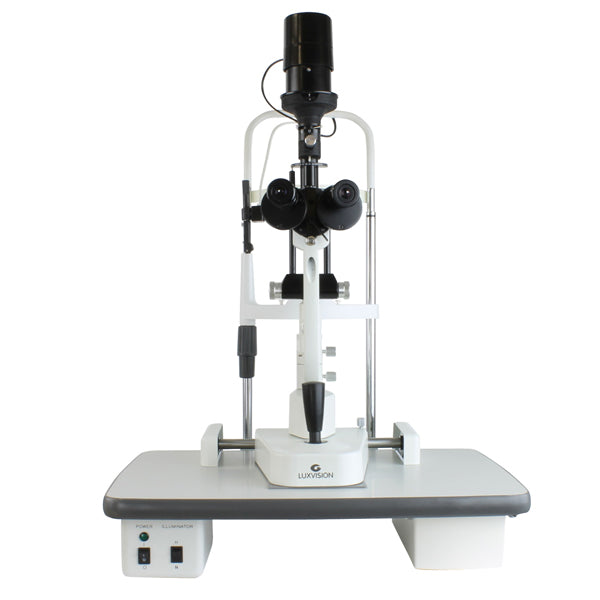

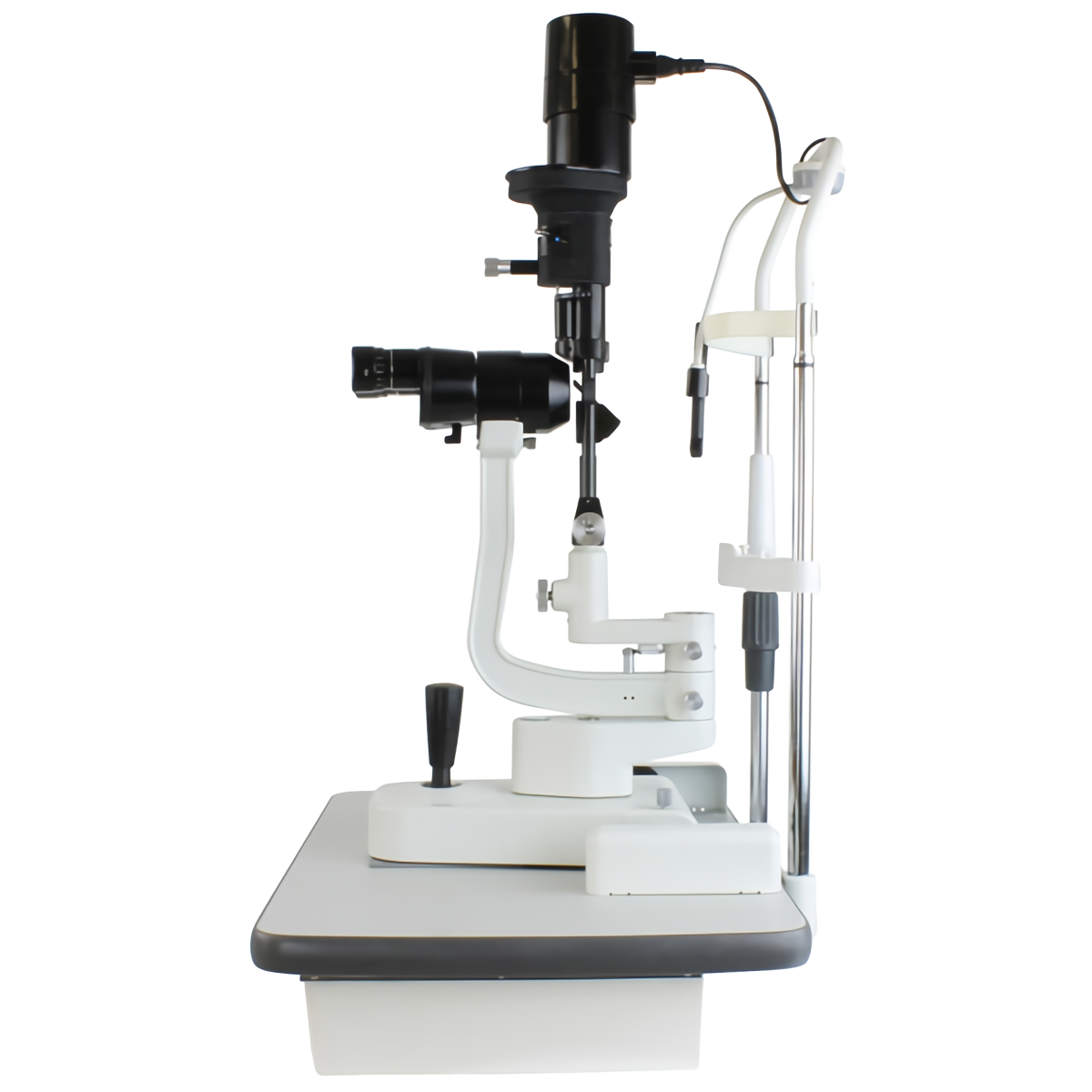

SL-880 Slit Lamp Microscope

login to view price
SKU: SL-880

(Not available)

Short Description

		Cross-Angle Stereovision Optics Excellent clarity is just the beginning of what you can expect with Luxvision's SL-880 tower illumination system. This advanced Cross-Angle Stereovision Optical System offers two-step magnification and a wide field of view.

		Two-Step Magnification Luxvision's SL-880 features an easy-to-change two-step magnification system that allows for a more detailed exam. Final magnification ratios are equivalent to 10x (Ø18mm) and 16x (Ø14.5mm) with the 10x eyepiece. Fine adjustments can also be made to the PD and optical correction.

		Wide Field of View with a Range of PD and Diopter Adjustment Luxvision's SL-880 Advanced Converging Stereoscope Microscope offers a very large binocular field of view of Ø18mm and Ø14.5mm, with a 55mm-82mm range of PD adjustment. The SL-700 also features diopter adjustments of ±6D using the 10x eyepiece.

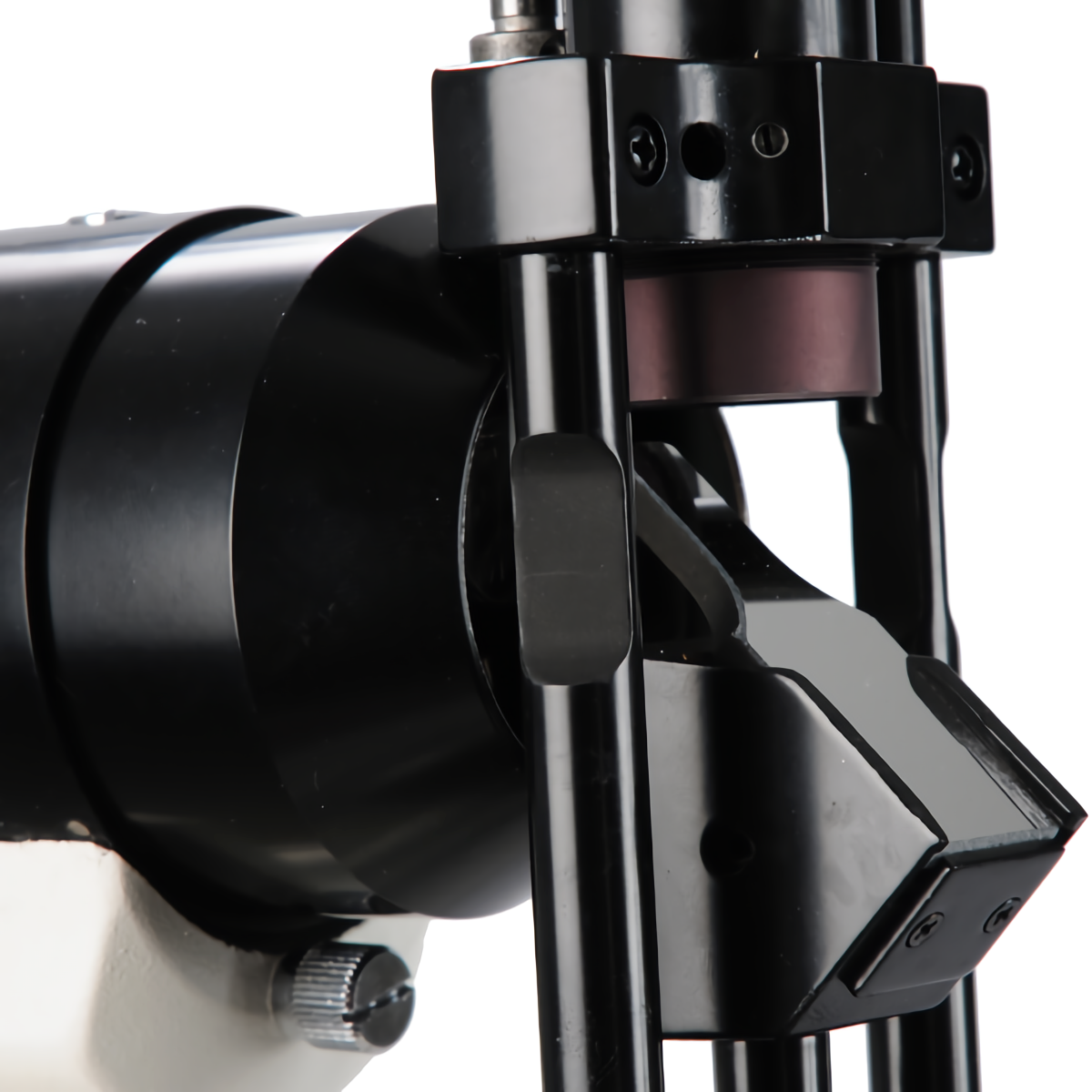

		High Clarity Luminance and Built-in Filters The SL-880 utilizes a 12-volt, 30-watt high luminance halogen lamp to provide bright illumination and outstanding clarity. By shifting the unit's filter selection tray, you can easily select from four built-in Illumination Pathway Filters. Options include a heat absorption filter that aids in patient comfort during lengthy exams, a red-free filter that enhances structural contrast, a cobalt blue filter for use in fluorescein assessment, and a grey filter. When indirect retro-illumination is needed, you can easily deflect the illumination light using the unit's well-placed controls.

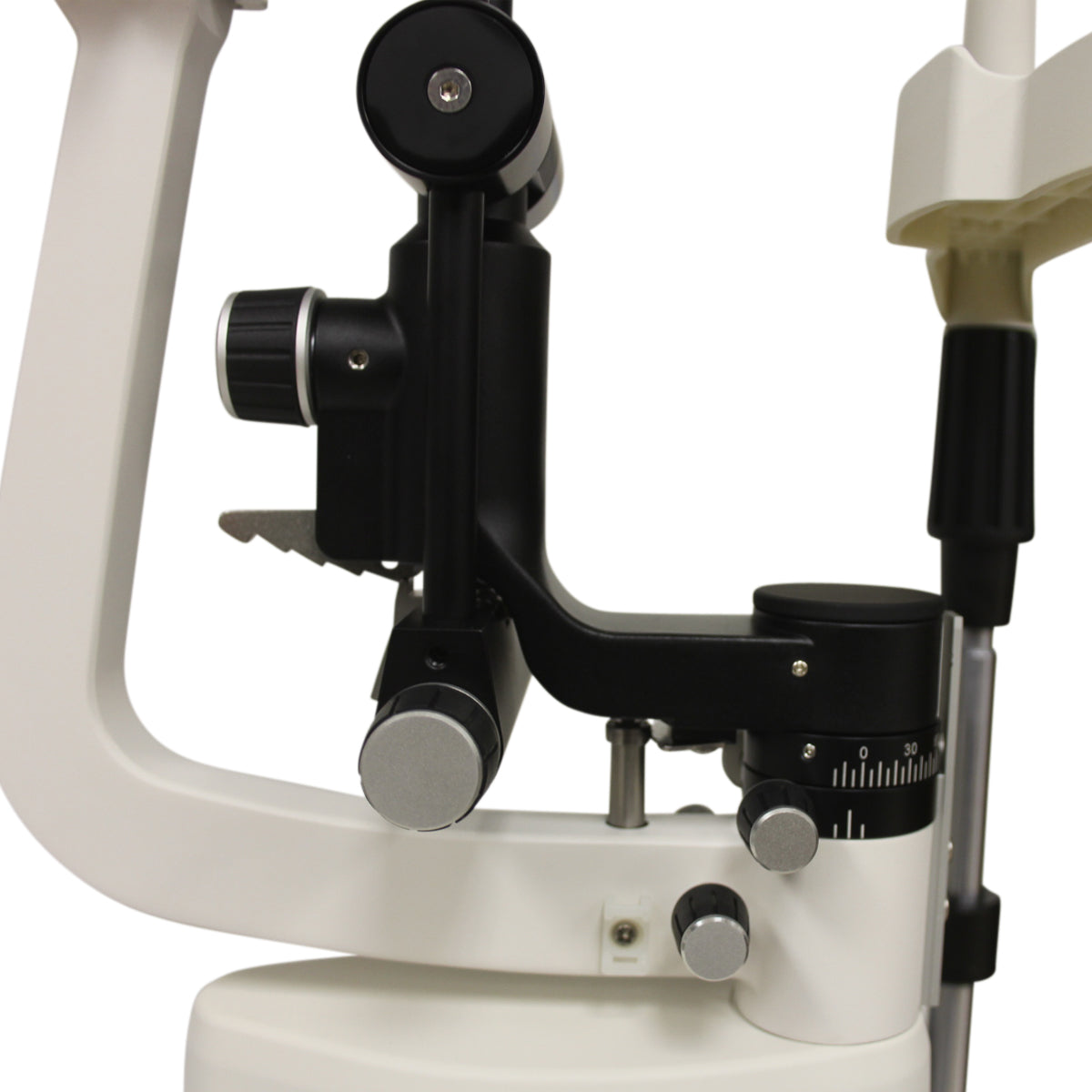

		Continuous Slit Rotation and Aperture Adjustment The SL-880 features 2/3x slit projection magnification and enables users to modify slit width continuously from 0mm to 9mm using an easy-to-adjust knob. The slit becomes a circle at 9mm. A simple turn of the aperture and slit height control knob reveals that six different beams of light are available at full aperture: Ø9mm, Ø8mm, Ø5mm, Ø3mm, Ø1mm, and Ø0.2mm. The slit height, which is indicated in a display window, also can be changed continuously, from 1mm to 8mm. Using precise movements and controls, operators can swing the main body of the slit horizontally to revolve the slit image at any angle in the vertical or horizontal direction, from 0° to 180°. Another helpful scale indicated the angle of image rotation.

		Optional Accessories Luxvision's SL-880 slit lamp can be equipped with the TN-150 / TN-150B applanation tonometer or the Haag-Streit AG Model R-900 or Model T-900 applanation tonometer for measuring intraocular pressure.

		Ergonomic Design Delivers Comfort and Control The SL-880 makes it simple to capture the necessary views. All of the unit's knobs, dials and controls are ergonomically designed with comfort and efficiency in mind. Rheostat-based adjustable illumination offers control of three different levels of brightness.

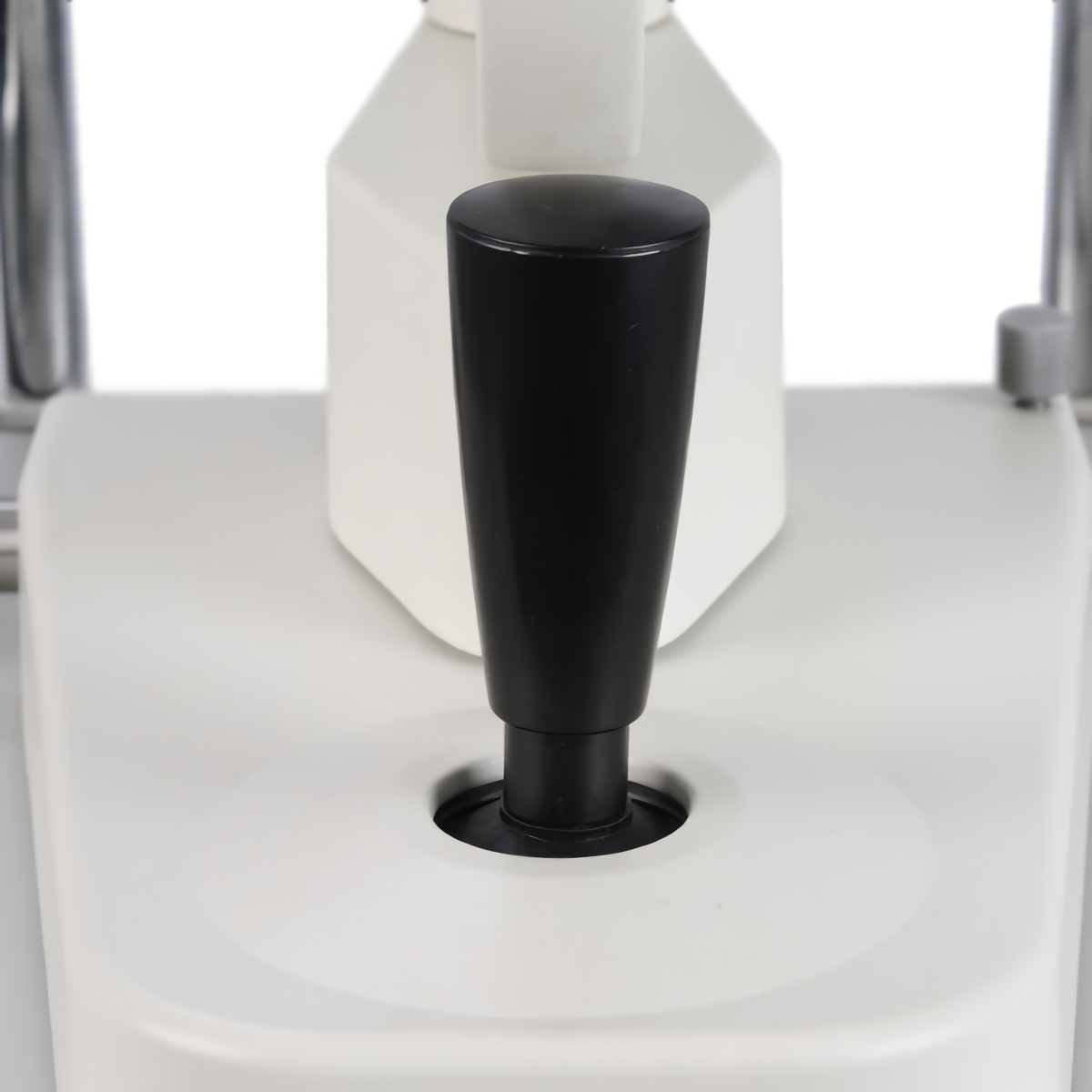

		Multidirectional Joystick Maneuver the SL-880 with ease using the intuitive multidirectional joystick. Precision adjustments are at your fingertips by simply turning and tilting the joystick. The base operation of the SL-880 offers the following movements: forward and back movement to 90mm; left and right movement to 100mm, fine movement to15mm and vertical movement to 30mm. Once you achieve the proper alignment, the base can be locked to prevent sliding.

Small Footprint Luxvision's SL-880 takes up minimal space without compromising features or quality. A compact work table is included with the SL-880. Also, the unit's accessory drawer is a useful addition to the unit's footprint and can be used to store the focusing test rod and other accessories.

Microscope

Type	Cross-Angle stereovision

Model of Magnifying	Change the objective for 2 grade magnification

Eyepiece	10x

Total Magnification Rate	Objective x Eyepiece = Magnification Rate / Vision Field 1x 10x 10X 10mm 1.6X 10X 16X 14.5mm

Range of P.D. Adjustment	10x eyepiece 2.16in to 3.22in (55mm to 82mm)

Diopter Adjustment	10x eyepiece ±6D

Illumination

Slit Projection Magnification	2/3x

Slit Width	Continuous from 0in to 0in to 0.35in (0mm to 9mm) (at 0.35in/9mm, slit becomes a circle)

Slit Height	Continuous from 0.04in to 0.31in (1mm to 8mm)

Aperture Diameter	ø0.35in, ø0.31in, ø0.20in, ø0.12in, ø0.08in, ø0.04in, ø0.008in (ø9mm, ø8mm, ø5mm, ø3mm, ø2mm, ø1mm, ø0.2mm)

Slit Angle	0º to 180º with horizontal scanning capability

Slit Inclination	5º, 10º, 15º, 20º four steps

Filter Piece	Heat-Absorption, Grey, Red-Free and Blue

Illumination Bulb	12V30W halogen bulb

Movement Base

Fore and Back Movement	3.5in (90mm)

Left and Right Movement	4in (100mm)

Fine Movement	0.6in (15mm)

Vertical Movement	1.18in (30mm)

Chin-rest Parts

Vertical Movement	3.15in (80mm)

Fixation Target	Red LED

Power Source

Input Voltage	100/220V + 10%

Input Frequency	50/60 Hz

Input Power	58VA

Output Voltage	Illumination bulb 9.9V, 11.6V

Fixation Target	7.2V

Electric Safe Standard	Conform to Standard IEC601 - 1, Class I Type B

Dimension and Weight

Packing Box	26.4 x 22.4 x 20.1in (670 x 570 x 510mm)

Total Weight	50.6lb (23 Kg)

Net Weight	44lb (20 Kg)

Click here to see the manual

Click here to see the brochure

Manufacturer: USO

Manufacturer SKU: SL-880

The Luxvision SL-880 Slit Lamp Microscope presents a great stereoscopic optical system by adding to fusing images a focal point. Smart design and a long list of features make Luxvision's SL-880 Cross-Angle Stereovision Microscope an excellent fit for any practice. The SL-880 offers tower illumination in a Cross-Angle Stereovision Optical System. Well-placed controls and two-step magnification can be easily changed between 1x and 1.6x, using a conveniently located lever. Final magnification ratios are equivalent to 10x (Ø18mm) and 16x (Ø14.5mm) with the 10x eyepiece. A high luminance halogen lamp provides incredible clarity in any of six available aperture diameters. A reflecting mirror, tilt mechanism and four illumination filters are among the many added features that practitioners enjoy when selecting this well-priced slit lamp. Great features, quality design, and outstanding performance make Luxvision's SL-880 Slit Lamp an exciting choice at a compelling value.
