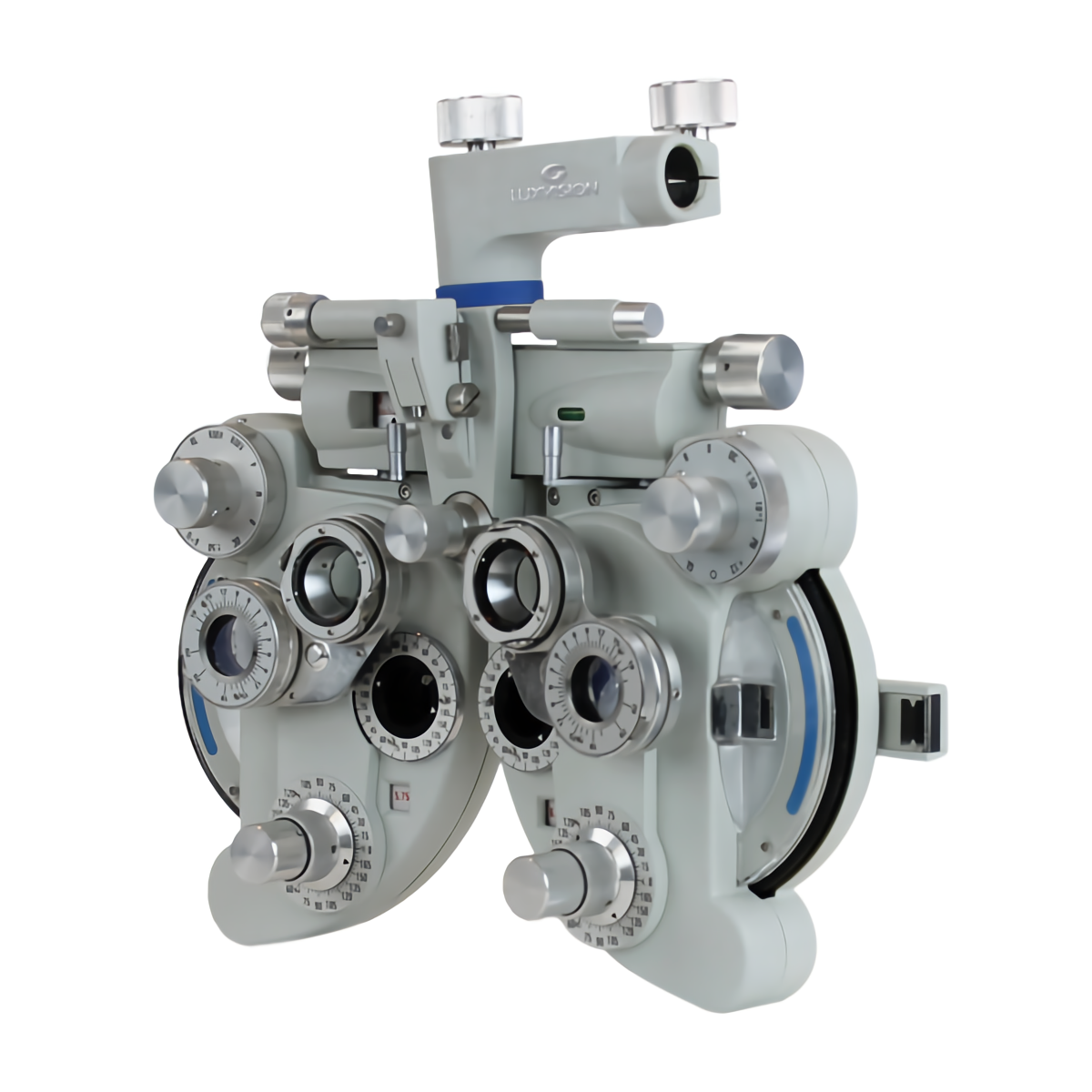

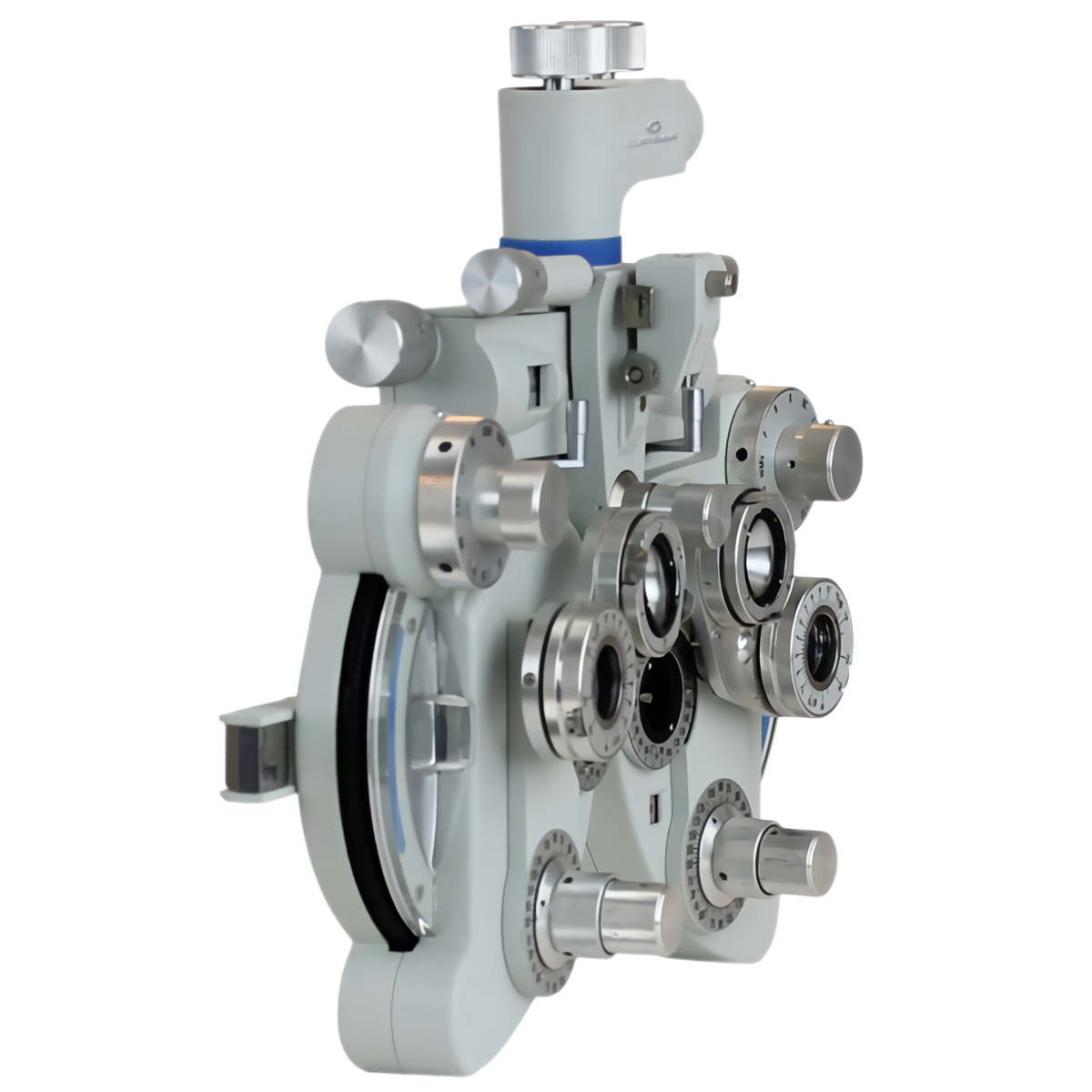

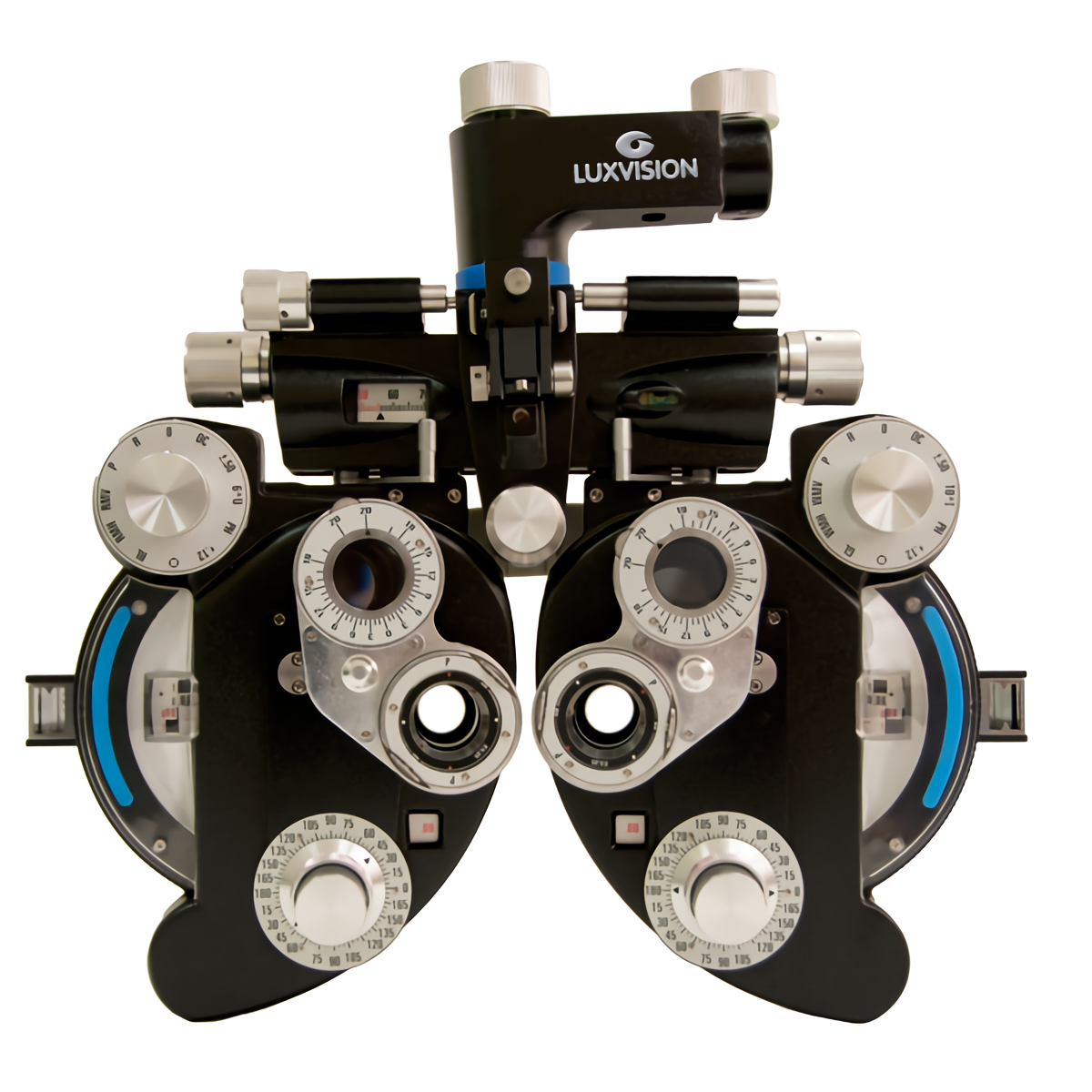

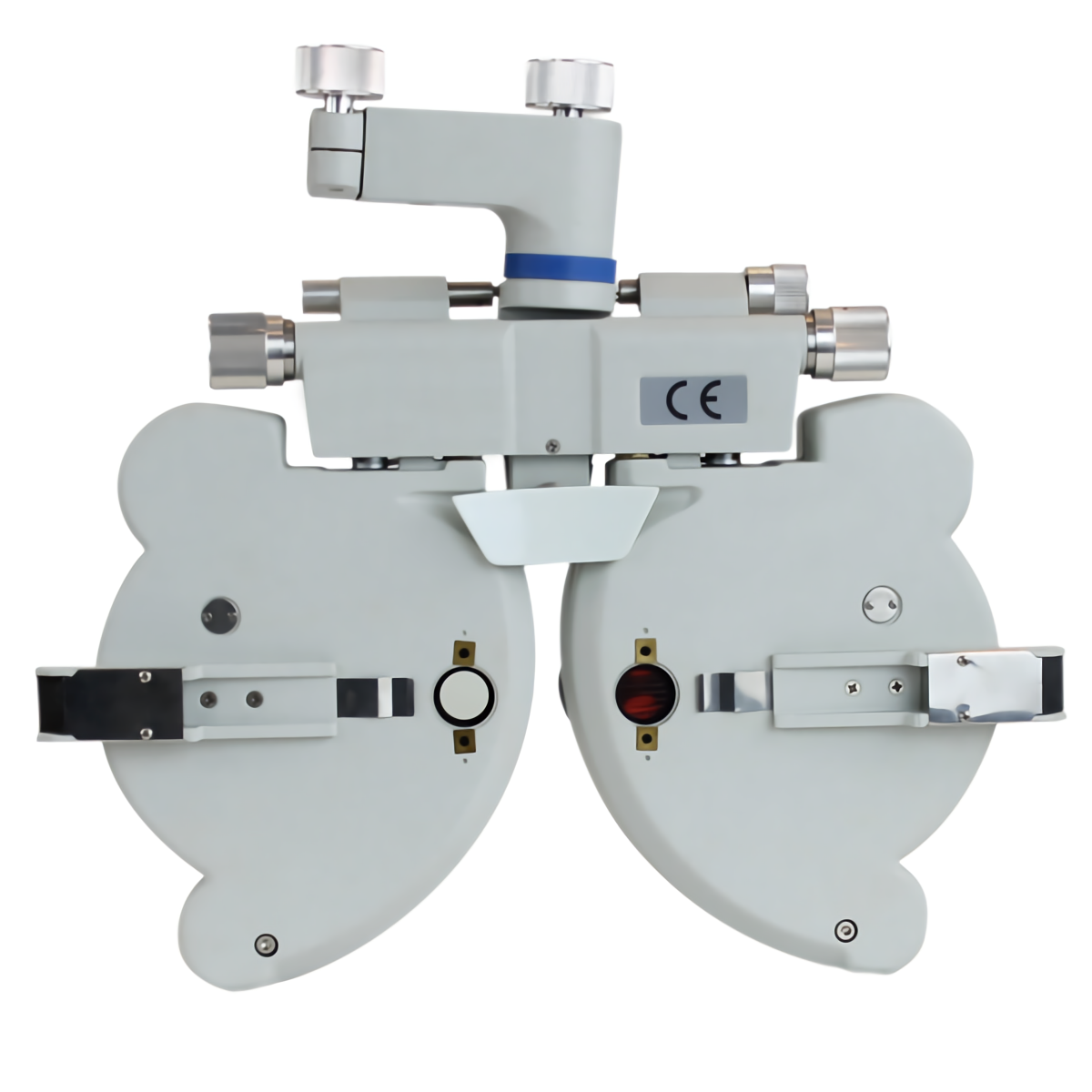

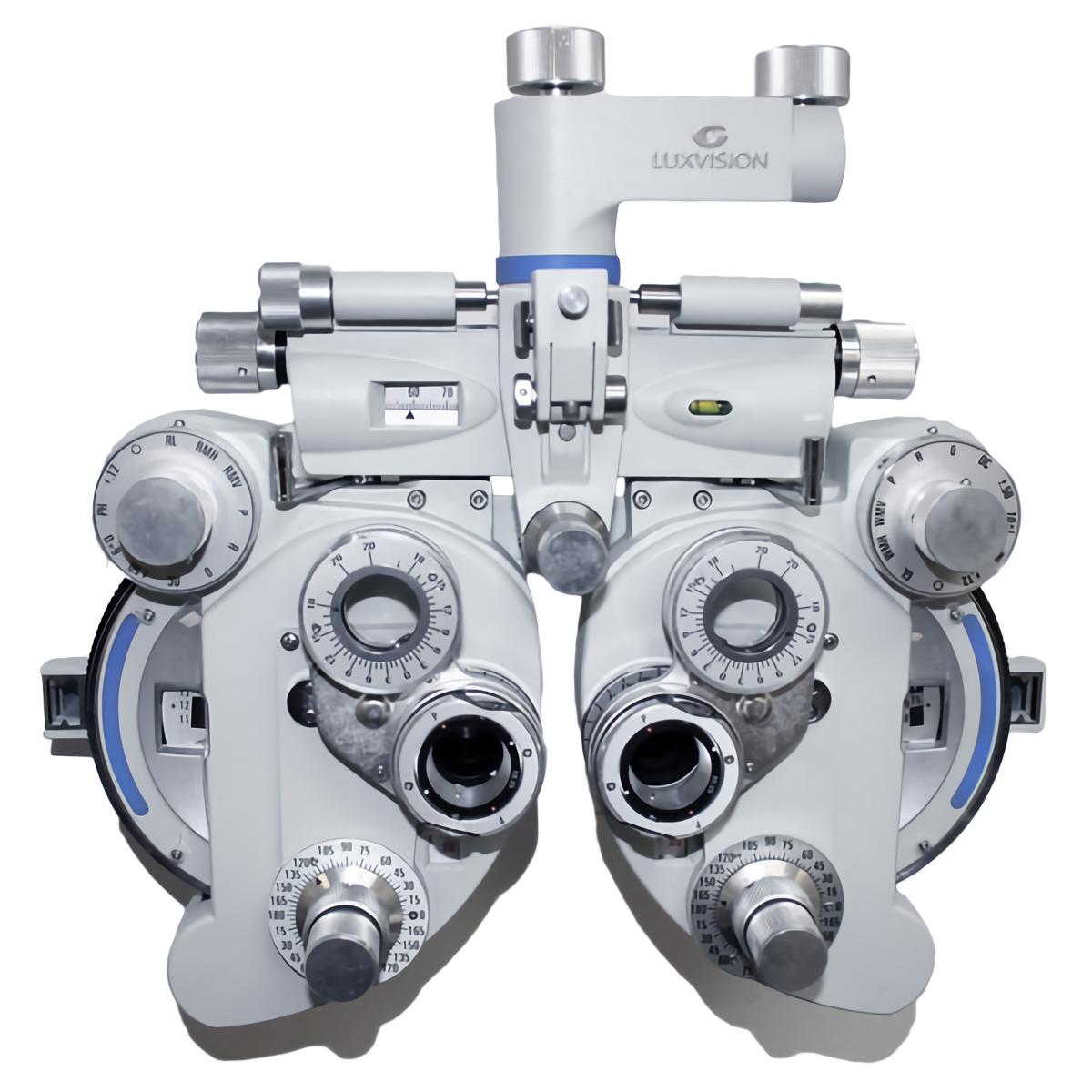

R-2600 Manual Refractor

R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
Click image to zoom
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor
R-2600 Manual Refractor

R-2600 Manual Refractor

login to view price
SKU: R-2600

Color
(Not available)

Short Description


manual refractor r-2600 luxvision us ophthalmic

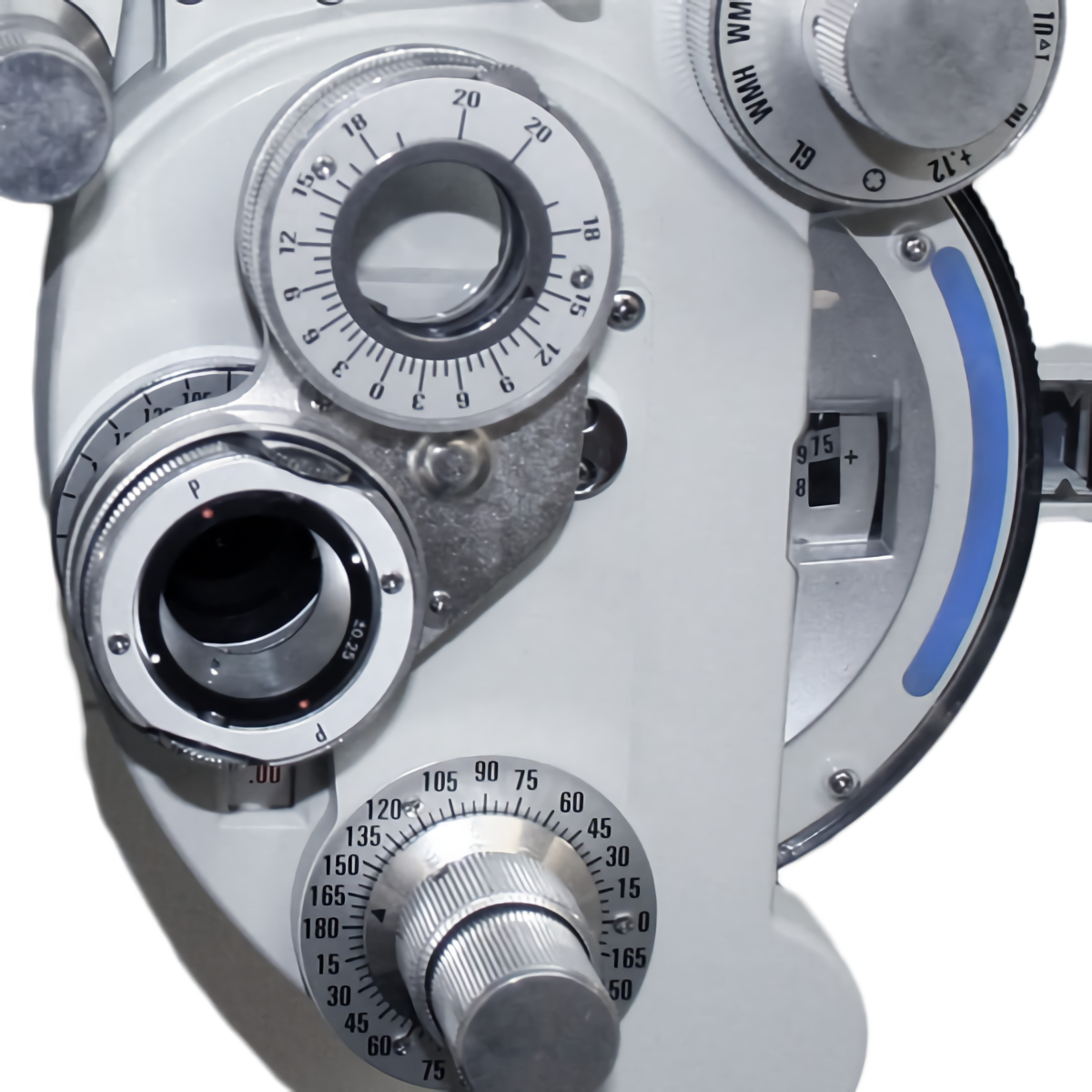

 Wide Range Sphere Powers
The Luxvision R-2600 features an impressive spherical power range from -19.00D to +16.75D in 0.25D steps. By using the unit’s auxiliary lens, you can measure in 0.12D steps. The unit also features a Rapid Feed Dial that allows you to quickly change sphere power in 3.00D steps for added speed and convenience.

Outstanding Range of Cylinder Powers
Measure cylindrical power ranges from 0 to -6.00D in 0.25D steps. Or, use the auxiliary lens and measure ranges from 0 to -8.00D in 0.12D steps.


Simplified Cross Cylinder Measurements (±0.25D)
Perform astigmatic testing with ease. The cross cylinder loupe is synchronized with the control knob eliminates the need for axis adjustment when performing cross cylinder testing. The R-2600 also features a built-in ±0.50D cross cylinder auxiliary lens.


manual refractor r-2600 luxvision us ophthalmic
Rotary Prism
Obtain maximum field of view with the R-2600. The wider 1∆D spacing and impressive 20∆D range simplifies readings.

manual refractor r-2600 luxvision us ophthalmic
Interpupillary Distance Adjustment
Convenient knobs, located on both sides, enable smooth and quick PD adjustment. The pupillary distance adjustment ranges from 45mm-80mm in 1mm steps.

manual refractor r-2600 luxvision us ophthalmic
Built-in Auxiliary Lenses
The R-2600 features several built in auxiliary lenses including ±0.50D auxiliary cross cylinder lenses, +0.12D auxiliary cylinder lenses, and +1.50D (for retinoscope) auxiliary spherical lenses.

Accessory Lenses Included
For even greater flexibility, three accessory lenses are included: -0.12CYL, -2.00CYL, and 0.00CYL.

Spherical Lens Range of measurement: -19.00D ~ +16.75D
Step length: 0.25D (being 0.12D when 0.12D auxiliary lens is used)
Cylindrical Lens Range of measurement: 0 ~ - 6.00D (being 0 ~ - 8.00D when additional lens is used)
Step: 0.25D
(being 0.12D when additional lens is used)
Axis of Cylindrical Lens Range of measurement: 0 ~ 180°
Step: 5°
Cross Cylindrical Lens ±0.25D
Rotary Prism Range of measurement 0 ~ 20Δ, Step 1Δ
Prism Basal Angle Range of measurement: 0 ~ 180°
Step: 5°
Pupil Distance Range 1.97in/50mm ~ 2.95in/75mm, Step 0.04in/1mm
Aggregated Adjustment oo, 15in/380mm (when PD=2.52in/64mm)
Adjustment of Forehead Rest 0.63in/16mm
Vertex Distance 0.54in/13.75mm
Overall Dimensions 13.18in (L), 12.6in (W), 3.54in (H) (335mm (L), 320mm (W), 90mm (H))
Weight 5kg / 11 lb
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: R-2600

The impressive Luxvision R-2600 Phoropter: high-grade coated lenses, oil free bearings for greater precision and durability, and extensive sphere and cylinder powers. Packed with features and extras, the Luxvision R-2600 is a truly impressive Manual Refractor. Perform complete vision testing on virtually any patient. Operators will appreciate the extensive sphere and cylinder powers, as well as the unit’s several built-in auxiliary lenses. The R-2600 simplifies cross cylinder testing by eliminates the need for axis adjustment—the two functions are completely synchronized. Users will also enjoy an easy-to-use convergence system that allows you to switch between distance and near with one simple flip of a lever. Several built-in auxiliary lenses plus three accessory lenses are all included with this versatile unit. You couldn’t ask for much more than the many features that all come standard in the R-2600 Manual Refractor.
