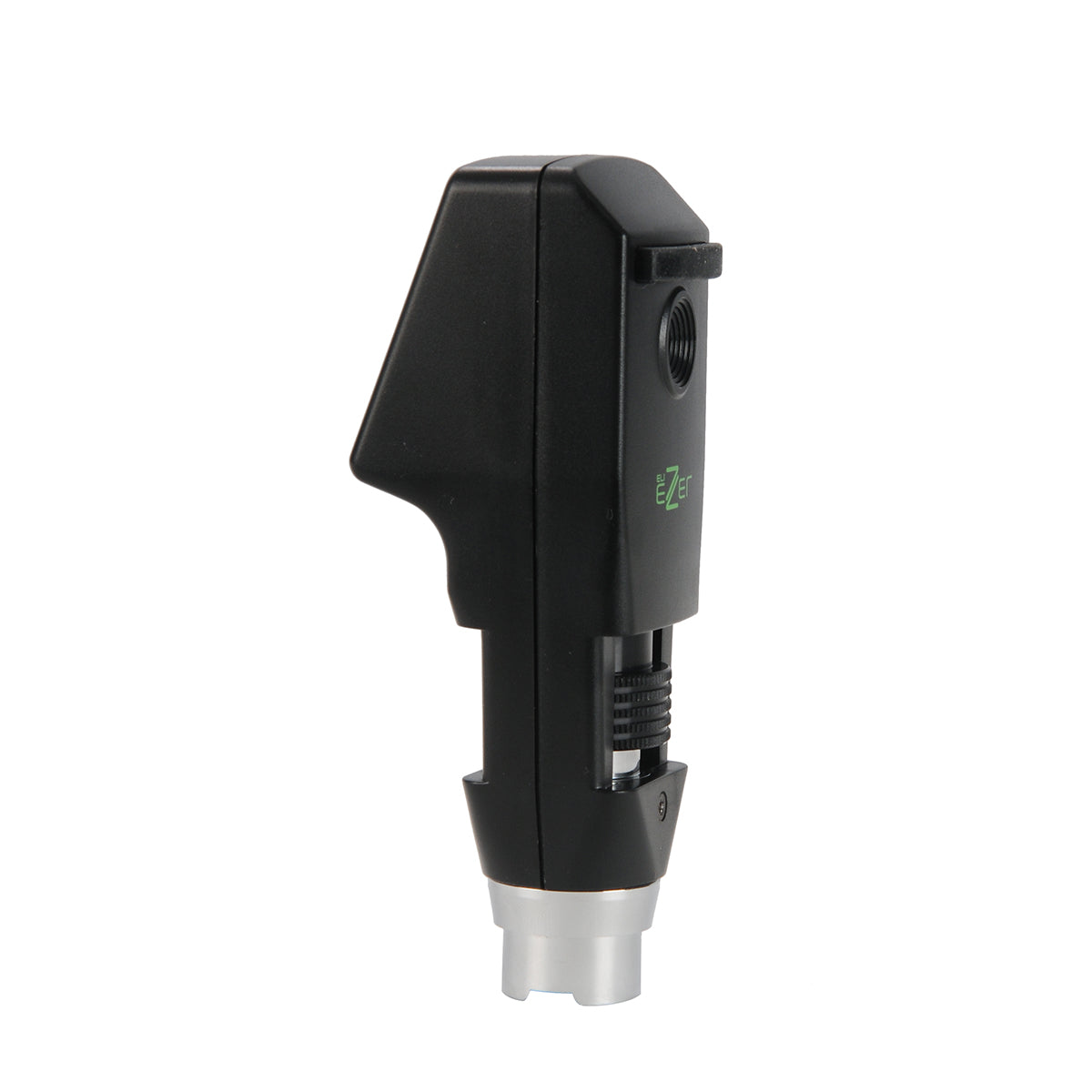

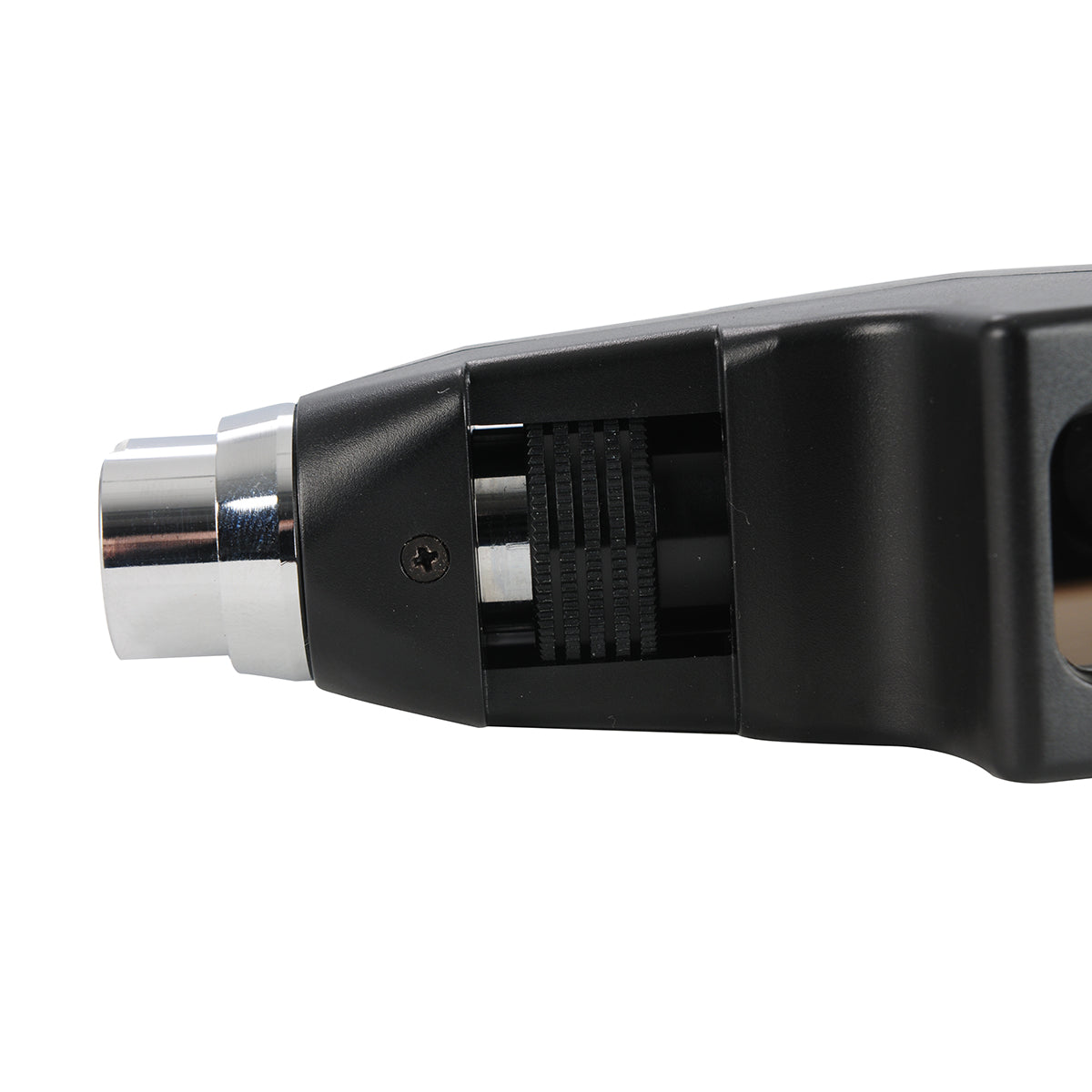

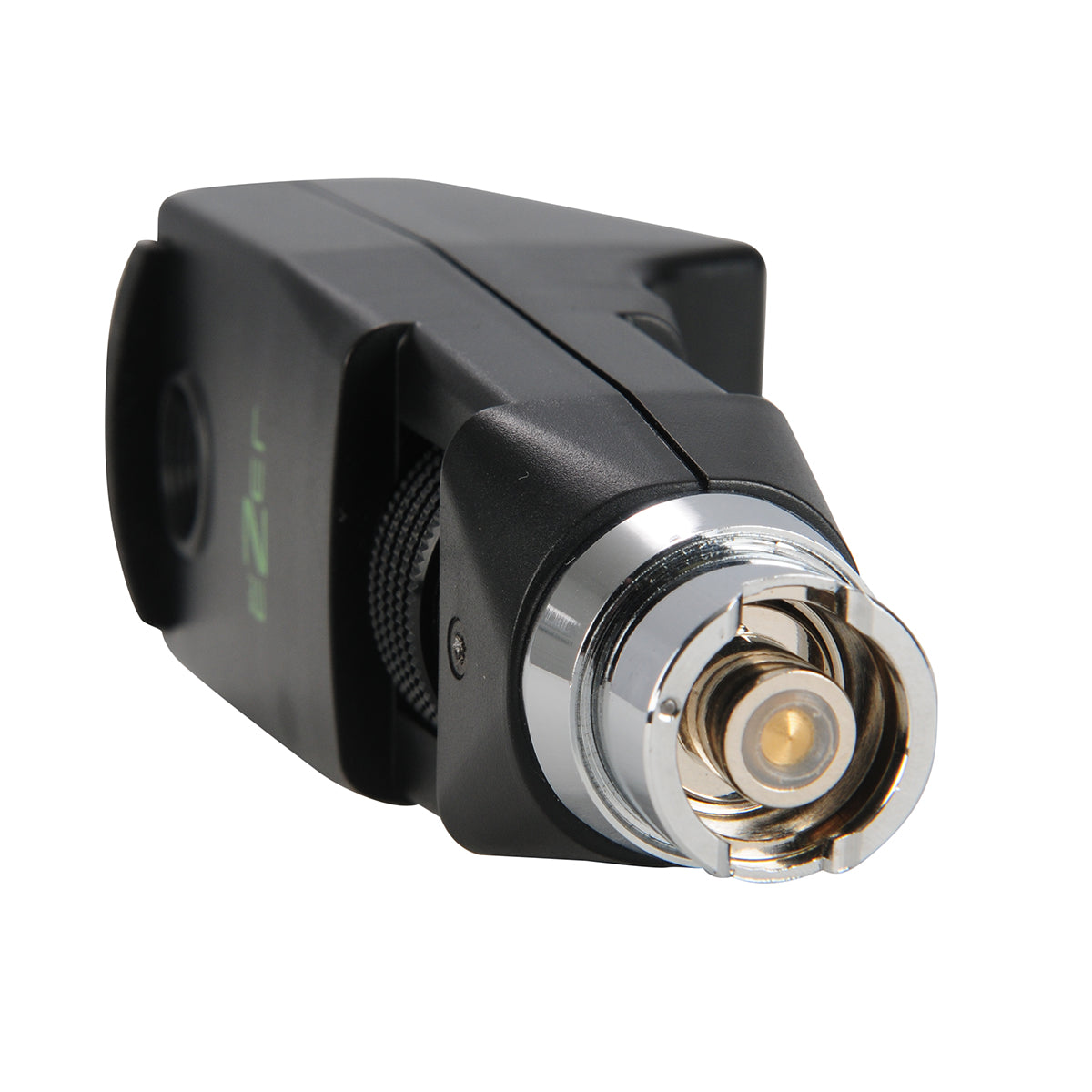

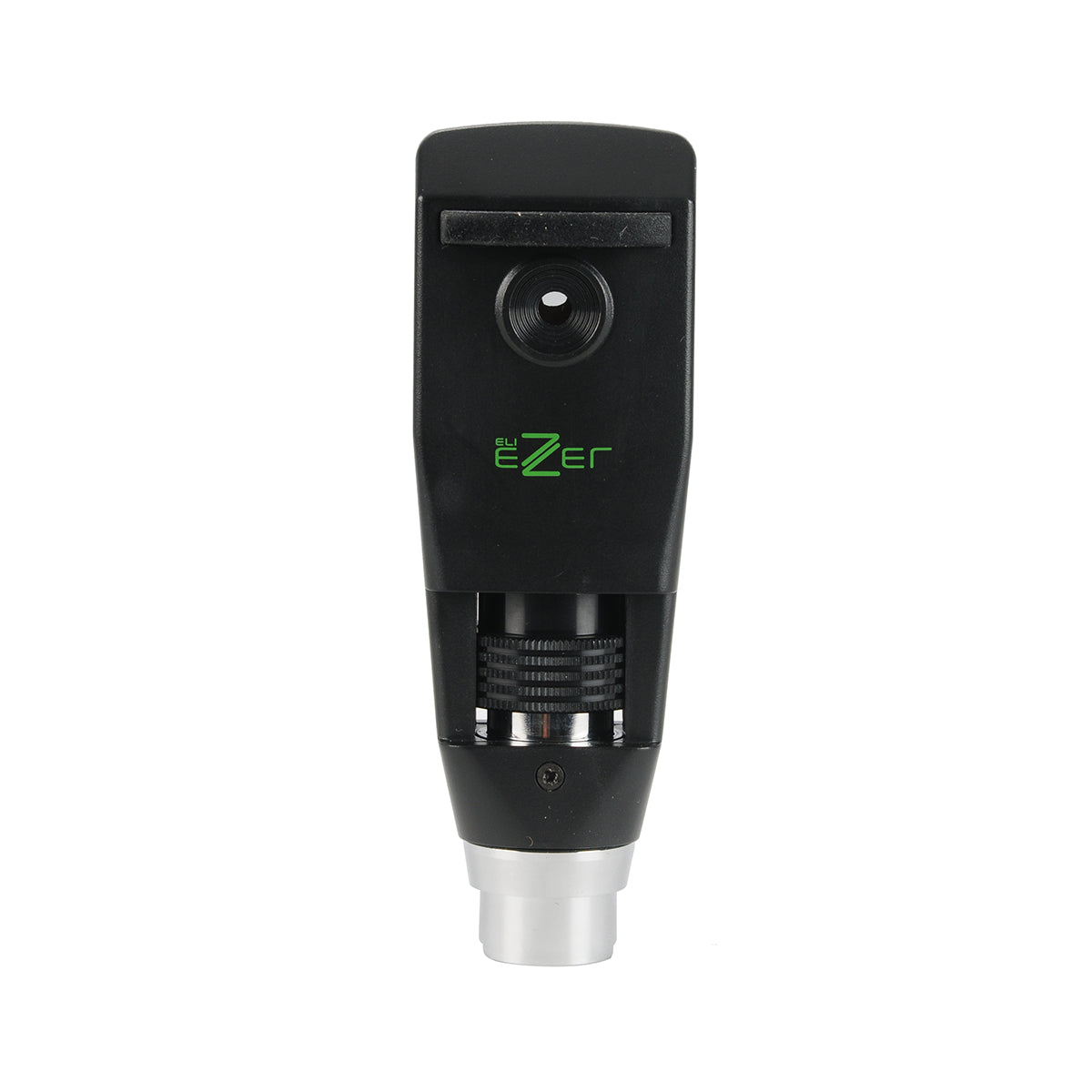

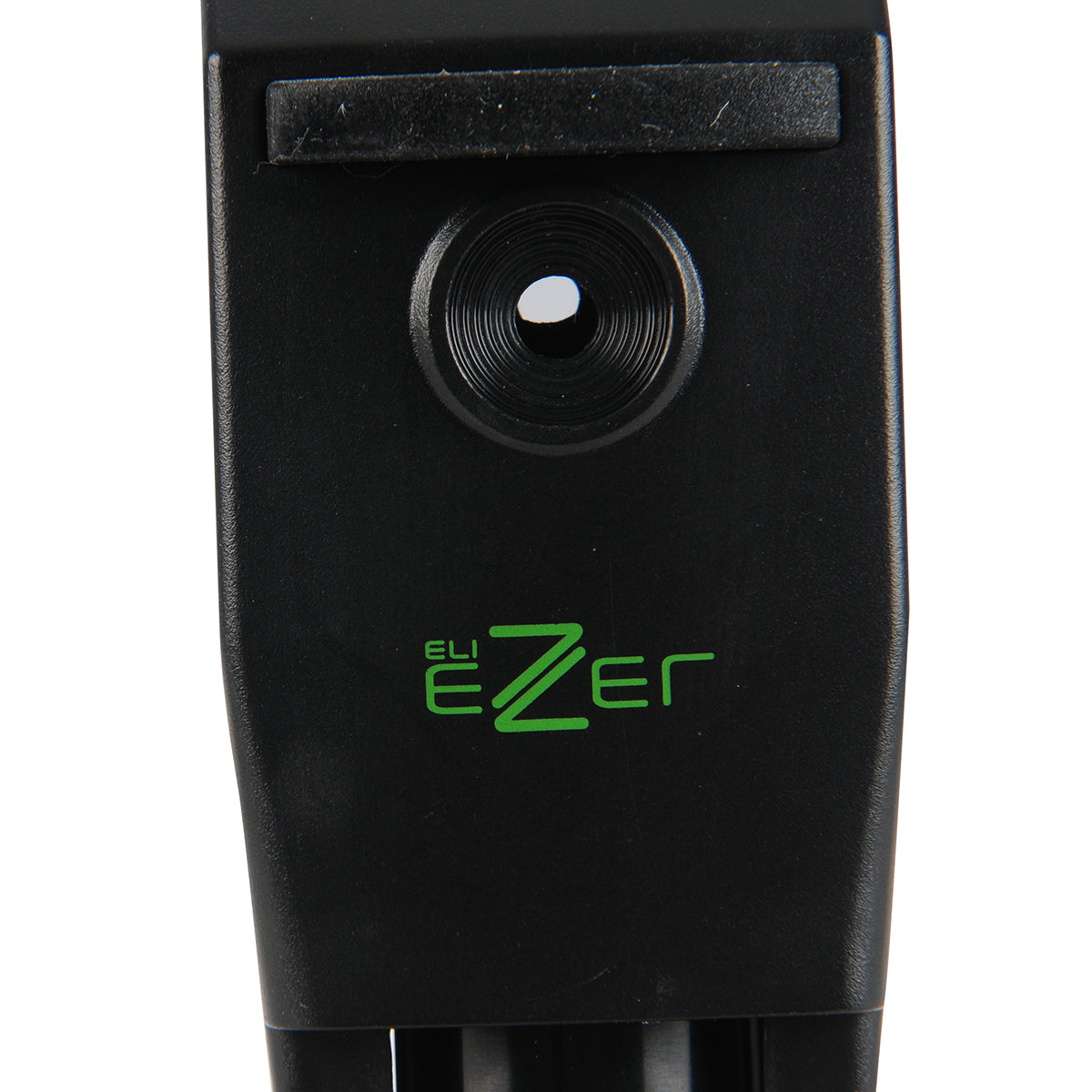

EZ-RET-2600 Retinoscope with Fixation Cards

EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
Click image to zoom
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards
EZ-RET-2600 Retinoscope with Fixation Cards

EZ-RET-2600 Retinoscope with Fixation Cards

login to view price
SKU: EZ-RET-2600

Type
(Not available)

Short Description


retinoscopio ez-ret-2600 ezer
Enhanced light ouptut makes refractions easier than ever, by producing one of the sharpest, brightest and cleanest streaks available on the market. Discover unparalleled performance in a compact design with convenient, user-friendly features.


retinoscopio ez-ret-2600 ezer
 Quality Superior
The EZ-RET-2600 has high-end multi-coated optics, a single control sleeve for vergence, rotation, and comfort, as well as a metal handle for long lasting operation. This retinoscope is also dustproof, making it maintenance free and long-lasting.

retinoscopio ez-ret-2600 ezer
With a streak retinoscope, an ophthalmologist can quickly ascertain the refractive properties of a patient’s undilated eye by altering the size of the linear beam.

At the lowest position, a divergent beam is also available. The EZ-RET-2600 is equipped with halogen and LED lighting and a bright 3.5 volt light for thorough examination.

retinoscopio ez-ret-2600 ezer
 Includes 4 Fixation Cards
Genuine Fixation Card Set cleverly attaches magnetically to the Ezer retinoscope head, allowing quick, easy, card changes. The Fixation Retinoscopy Cards provide age appropriate symbols and words based on the Pierce MEM card, for dynamic retinoscopy. These retinoscope fixation cards make checking accomodation easy.

It can be part of the following kits:

retinoscopio ez-ret-2600 ezer
Kit 1 Included: EZ-OPH-3600, EZ-RET-2600, EZ-HND-2600, EZ-CHG-3600, EZ-OPH/RET-CASE

retinoscopio ez-ret-2600 ezer
Kit 2 Included: EZ-OPH-2600, EZ-RET-2600, EZ-HND-2600, EZ-CHG-3600, EZ-OPH/RET-CASE

retinoscopio ez-ret-2600 ezer
Kit 3 Included: EZ-OPH-2600, EZ-RET-2600, EZ-HND-700 (2)

retinoscopio ez-ret-2600 ezer
Kit 4 Included: EZ-OPH-3600, EZ-RET-2600, EZ-HND-700 (2)

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
Kit 5 Included: EZ-OPH-2600 (Lamp Type: Halogen), EZ-RET-2600 (Lamp Type: Halogen), EZ-WTC-5200 DC
Kit 6 Included: EZ-OPH-2600 (Lamp Type: LED), EZ-RET-2600 (Lamp Type: LED), EZ-WTC-5200 DC

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
Kit 7 Included: EZ-OPH-3600 (Lamp Type: Halogen), EZ-RET-2600 (Lamp Type: Halogen), EZ-WTC-5200 DC
Kit 8 Included: EZ-OPH-3600 (Lamp Type: LED), EZ-RET-2600 (Lamp Type: LED), EZ-WTC-5200 DC
Optical Specifications
Rotation ≥ 190°
Distance from the device to which the real imagea of the lamp filament is adjustable ≤ 18 in / 450 mm
Distance from the device to which the virtual imagea of the lamp filament is adjustable ≤ 18 in / 450 mm
Length of streak imageb ≥ 1.18 in / 30 mm
Width of streak imageb ≤ 0.06 in / 1.5 mm
Deviation from linearity of the streak image at the focusb ≤ 0.08 in / 2 mm
Rotation decentring of centre of streak imageb ≤ 0.4 in / 10 mm
a: All distances are measured from the light exit of the device
b: When focus at 500 mm
Electrical Specifications
Bulb 3.5 V 2.7 W
Operation mode Intermittent, on-time should not exceed 2 min with off-time not less than 5 min
Environment Requirements
Operation Environment Temperature +10 °C - +35 °C
Relative Humidity 30% - 75%
Atmospheric Pressure 700 hPa - 1060 hPa
Shipping Common Conveyance
Storage Environment Temperature -40 °C - +55 °C
Relative Humidity 10% - 90%
Atmospheric Pressure 500 hPa - 1060 hPa
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: EZ-RET-2600

Streak Retinoscopy serves a key role in the examination process that takes place in the general and specialized optometry field. This objective measurement of the eye’s refractive power can be very helpful to health professionals and patients alike. With a closer look into the health of the patient’s retina, doctors can properly interpret important findings. General and specialized ophthalmology practices alike will benefit from the superior function and ease of use of the EZER EZ-RET-2600. This 3.5 volt streak retinoscope with retinoscope fixation cards allows doctors to quickly determine the health of a patient’s retina using state-of-the-art precision and flexibility. Quickly and efficiently discern problems and evaluate retinal health and function.
