EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set

EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
Click image to zoom
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set
EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set

EZ-OTO-1800 Pocket Ophthalmoscope and Otoscope Set

login to view price
SKU: EZ-OTO-1800

Type
(Not available)

Short Description

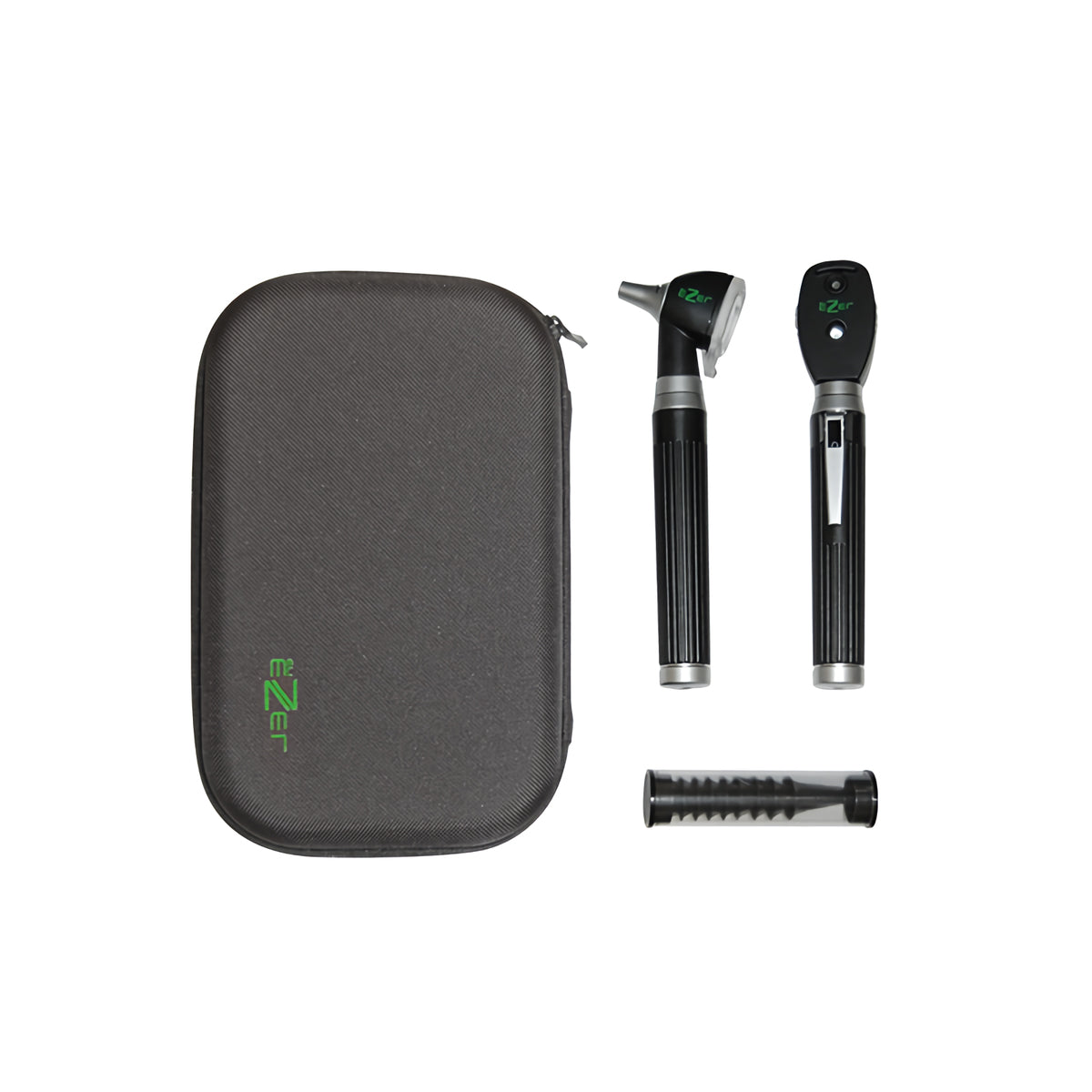

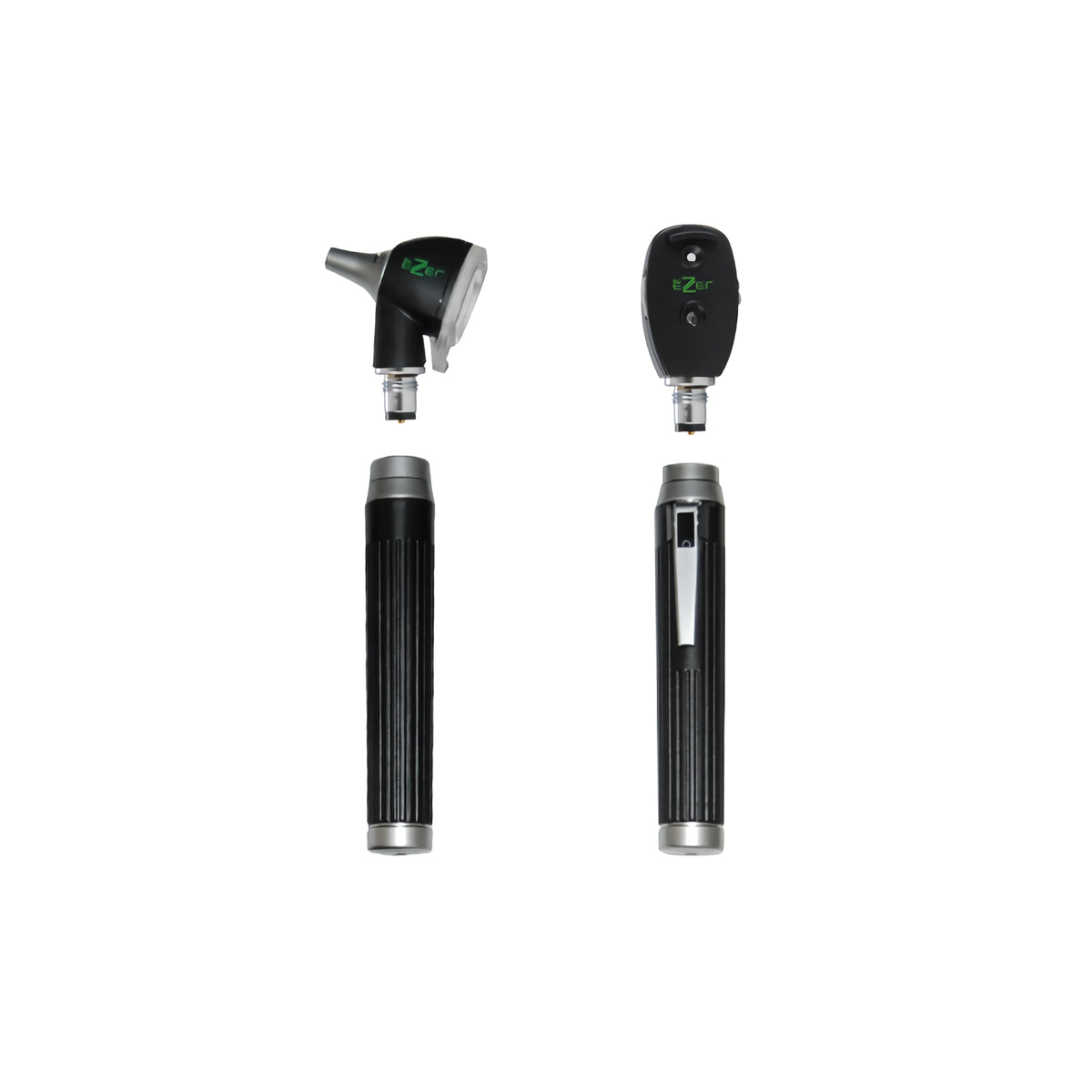

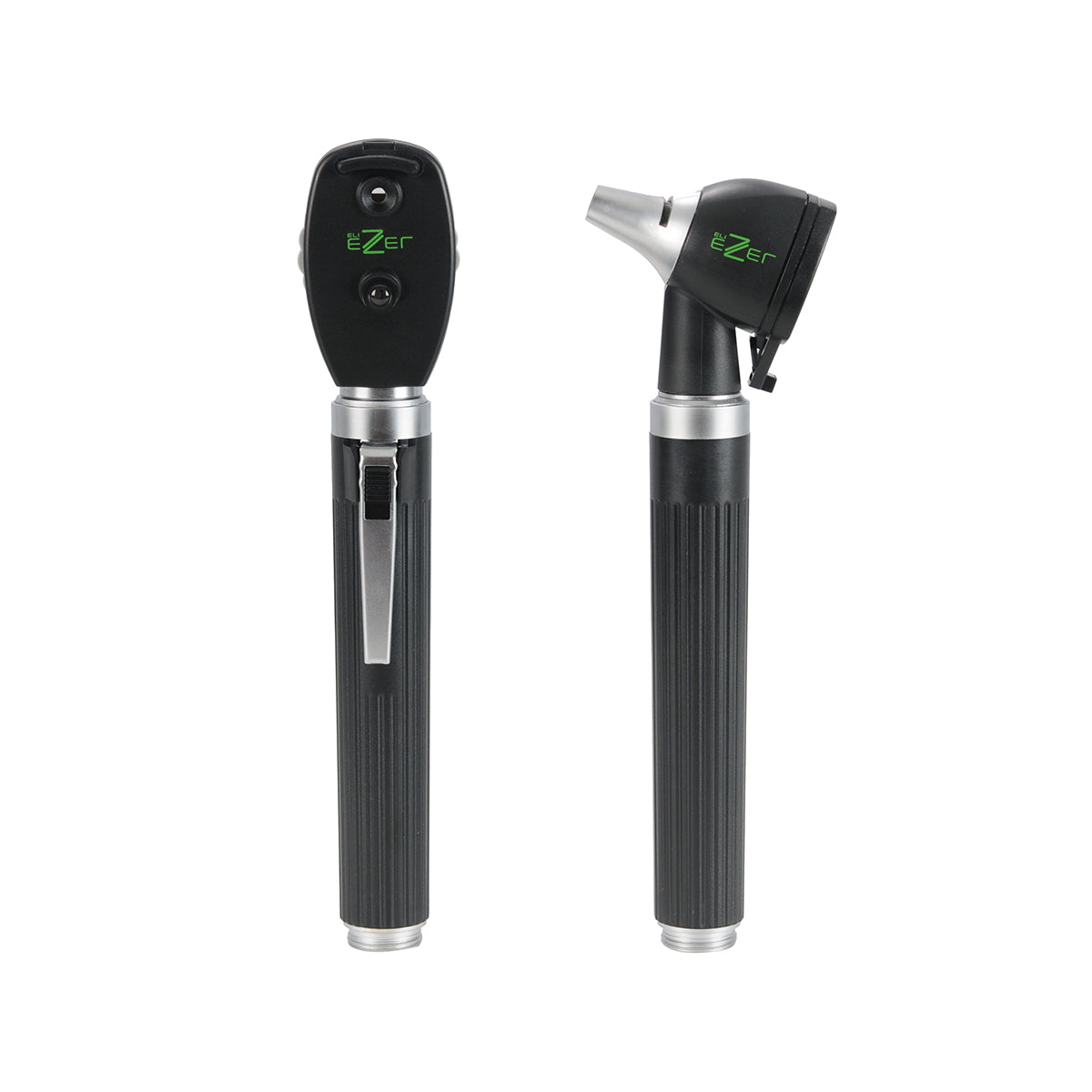

Ophthalmoscope and Otoscope Diagnostic Set 2 Pcs AA handle and Zipper Bag EZ-OTO-1800 Ezer - US Ophthalmic
 In addition to examination of the fundus, the ophthalmoscope is a useful diagnostic aid in studying other ocular structures. The light beam can be used to illuminate the cornea and the iris for detecting foreign bodies in the cornea and irregularities of the pupil.

With 19 different lenses, including 0D to ±20D, you’ll have everything you need, right at your fingertips.

There is a wide range of practical apertures and filters to select from ophthalmoscopes: small spot, large spot, hemispot, red-free filter, and fixation aperture.

Ophthalmoscope and Otoscope Diagnostic Set 2 Pcs AA handle and Zipper Bag EZ-OTO-1800 Ezer - US Ophthalmic
 Reduced Glare from a Brighter Source
Achieve improved views With the help of a fiber optics light transmitting system. Light projects from the tip of the otoscope with reduced glare are increased clarity. The ergonomic handle grants continuous brightness control while remaining comfortable for the user to hold for extended periods of time.

With a sealed system and 2.5x magnification, the otoscope allows for pneumatic otoscopy and accurate diagnosis of the otitis media. A swiveling wide-angle lens was created to be flexible for examination.


Ophthalmoscope and Otoscope Diagnostic Set 2 Pcs AA handle and Zipper Bag EZ-OTO-1800 Ezer - US Ophthalmic

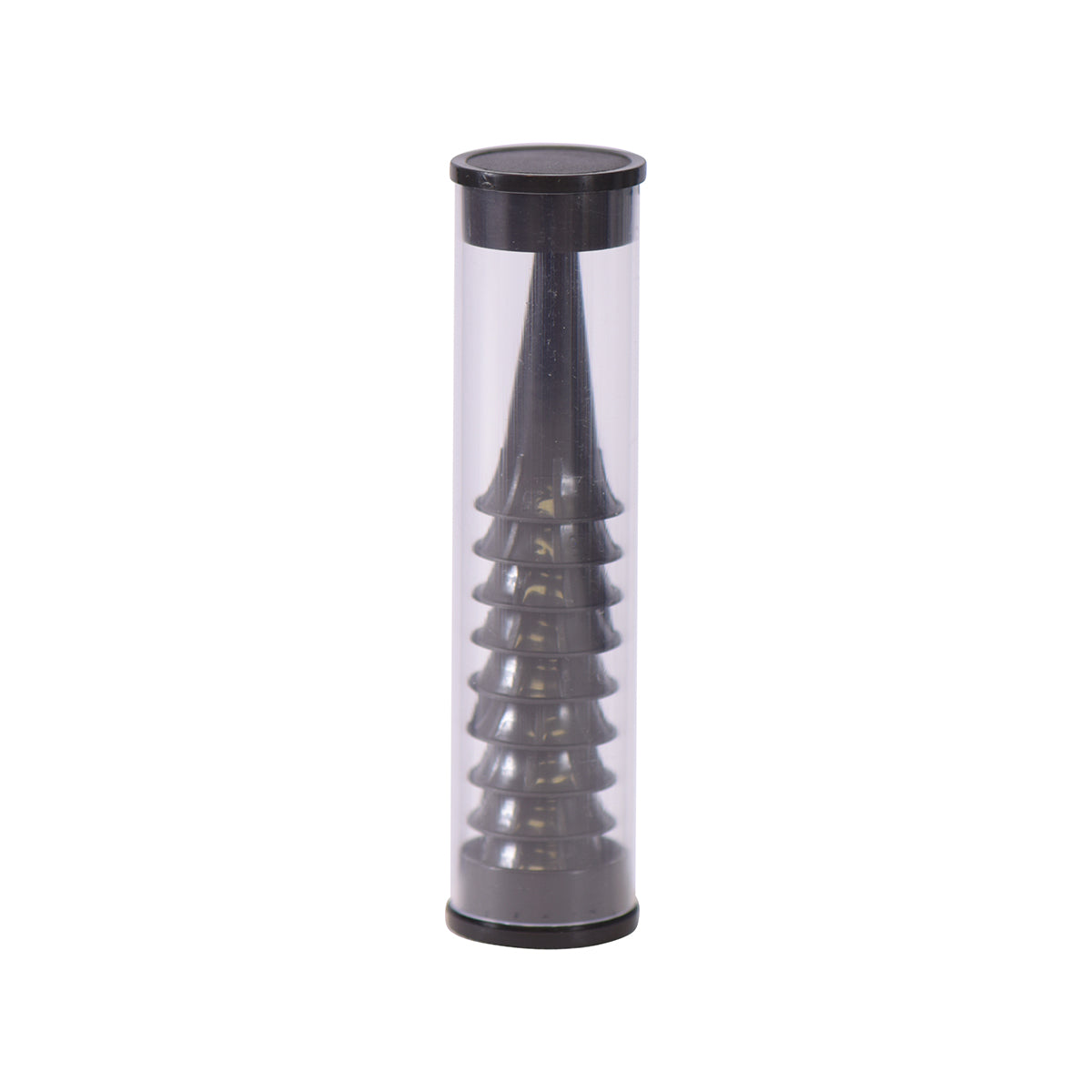

For convenience, otoscopes use disposable ear specula. With the Otoscope you can use speculations of different sizes: 2.5mm and 4.0mm. The selection of an appropriately sized specula is critical to ensuring proper use of the device and patient comfort. Younger patients who will have a narrow ear canal, select a smaller specula with a narrow profile. For adult patients, a wider specula can be used.


Ophthalmoscope and Otoscope Diagnostic Set 2 Pcs AA handle and Zipper Bag EZ-OTO-1800 Ezer - US Ophthalmic
 Motile Equipment for Mobile Care
Completely cordless, the battery operated handle allows physicians to move room to room and floor to floor for excellent patient care on the go. Transport the instrument and multiple disposable otoscope tips in a sleek and sturdy travel case.

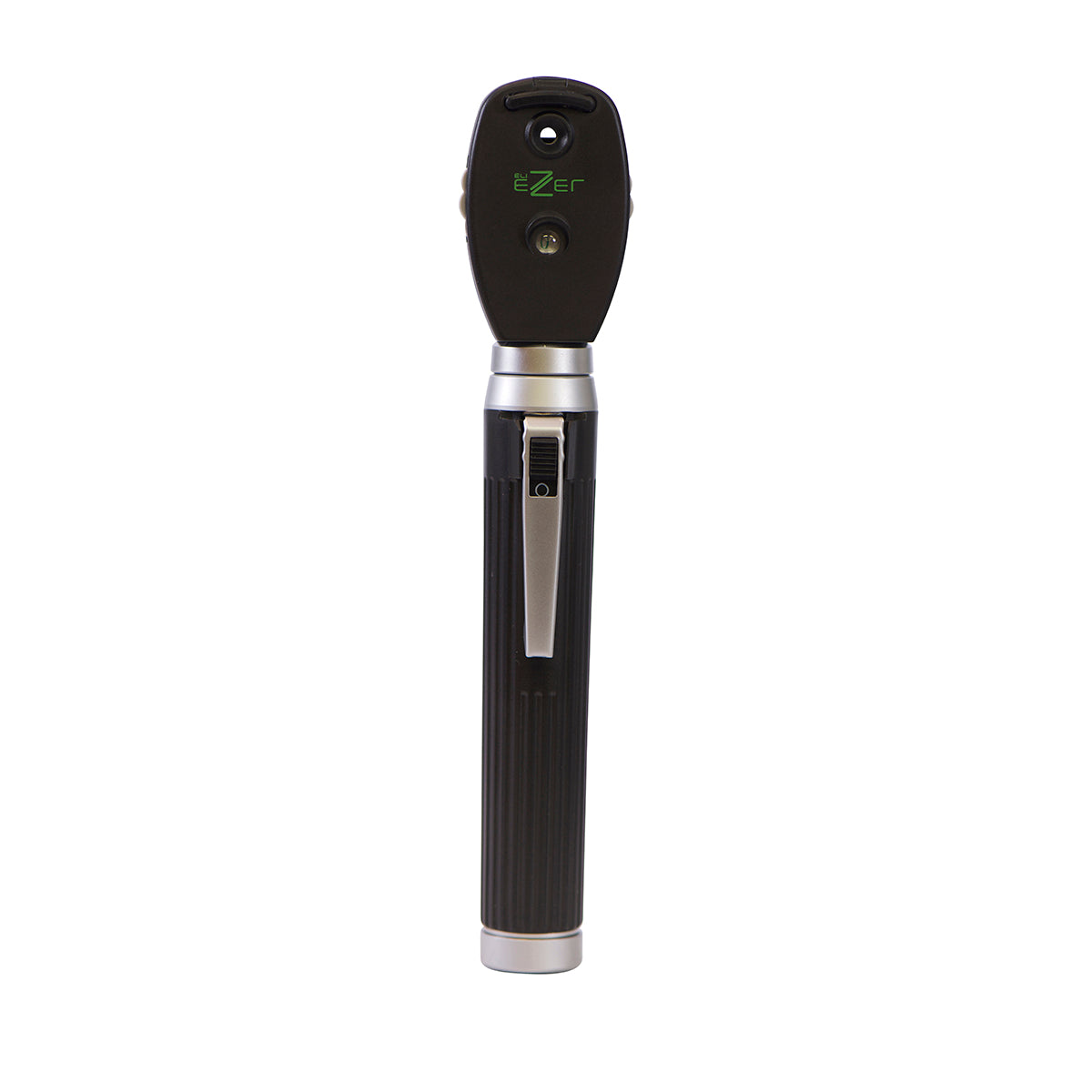

Ophthalmoscope
Optical Specifications
Diopter (D) 0D, ±1D, ±2D, ±3D, ±4D, ±6D, ±8D, ±10D, ±15D, ±20D
Aperture Red-free filter
Large spot
Small spot
Slit aperture
Fixation aperture
Electrical Specification
Rated Voltage Two AA alkaline or Ni-MH batteries
Type of bulb 2.5 V / 1.6 W
Electrical Safety Standard Complying with EN60601-1 / EN60601-1-2
Protection: Internal electrical power source
Operation mode: Intermittent. 2 minutes 'ON'. 5 minutes 'OFF'
Environment Requirements
Operation Environment Temperature
Relative Humidity
Atmospheric Pressure 		+10 °C - +35 °C
30% - 75%
700 hPa - 1060 hPa
Shipping Common Conveyance
Storage Temperature
Rel. humidity
Air Pressure		 -40 °C - +55 °C
10% - 90%
500 hPa - 1060 hPa

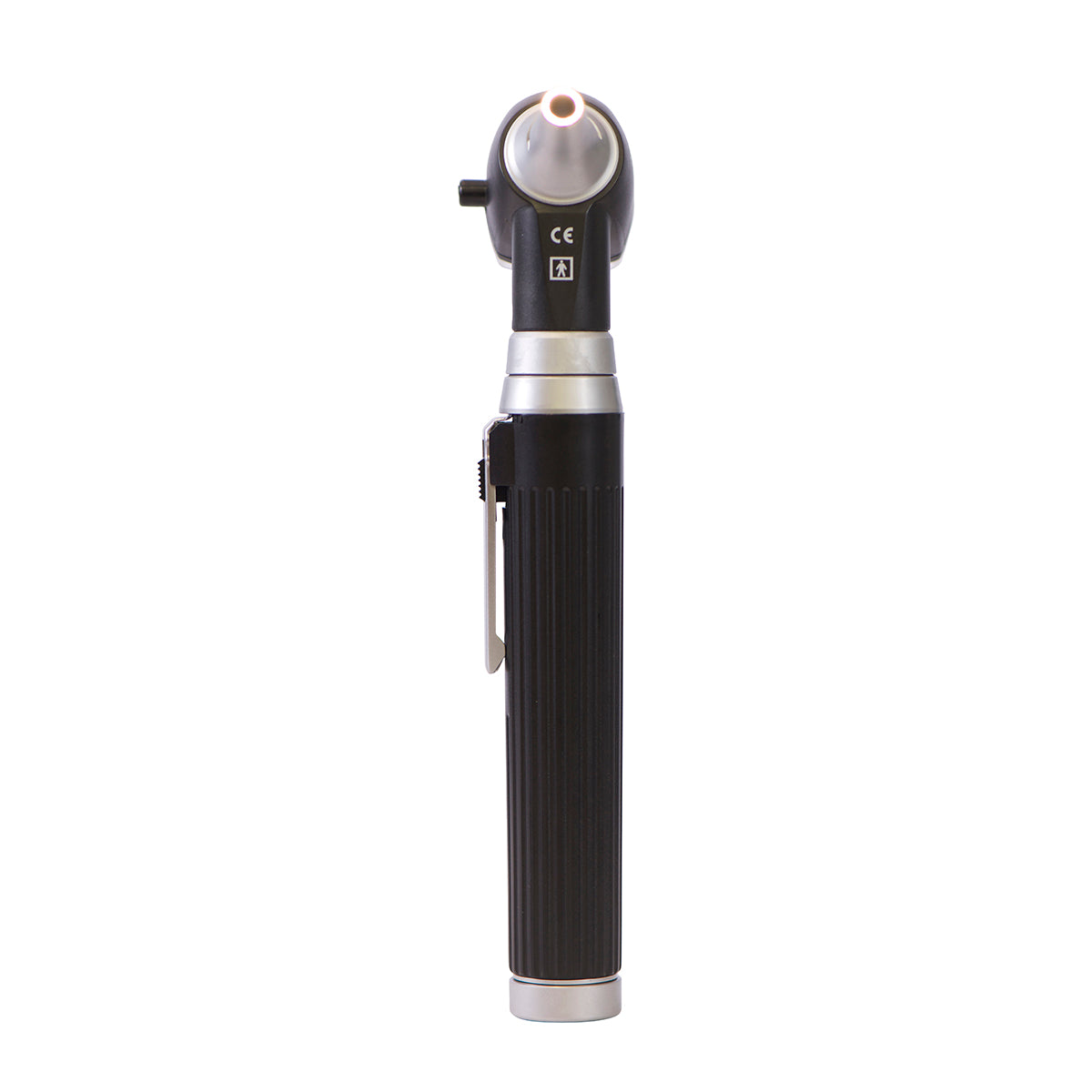

Otoscope
Optical Specifications
Illumination Fiber optics transmit light
Magnification of lens 2.5 x
Specifications of ear-specula
Diameter of ear-specula 0.10in/2.5mm, 0.16in/4mm
Specifications of insufflation Port
Insufflation Port Yes
Electrical Specification
Bulb 2.5V / 0.5 W
Rated Voltage Two AA alkaline or two Ni-MH batteries
Operation Mode Intermittent: on time should not exceed 2 min with off-time not less than 5 min
Electrical Safety Complying with EN60601-1 / EN60601-1-2
Protection: Internal electrical power source
Type BF applied part
Environment Requirements
Operation Environment Temperature
Relative Humidity
Atmospheric Pressure 		+10 °C - +35 °C
30% - 75%
700 hPa - 1060 hPa
Shipping Common Conveyance
Storage Temperature
Re. Humidity
Air Pressure		 -40 °C - +55 °C
10% - 90%
500 hPa - 1060 hPa
USO

Manufacturer: USO

Manufacturer SKU: EZ-OTO-1800

A must-have piece for any medical practice, the high quality construction of the EZ-OTO-1800 is unparalleled. Crafted with high-quality lenses that are scratch and dust resistant, it allows the physician to maintain a clear, consistent view with ease and flexibility. It’s built-in fiber optics transmission system helps reduce glare and the swiveling lens improves viewing accuracy which in turn helps improve maneuverability and allows for more precise diagnoses. Take this portable tool set with you from room to room with confidence that it’s ready to go at a touch.
