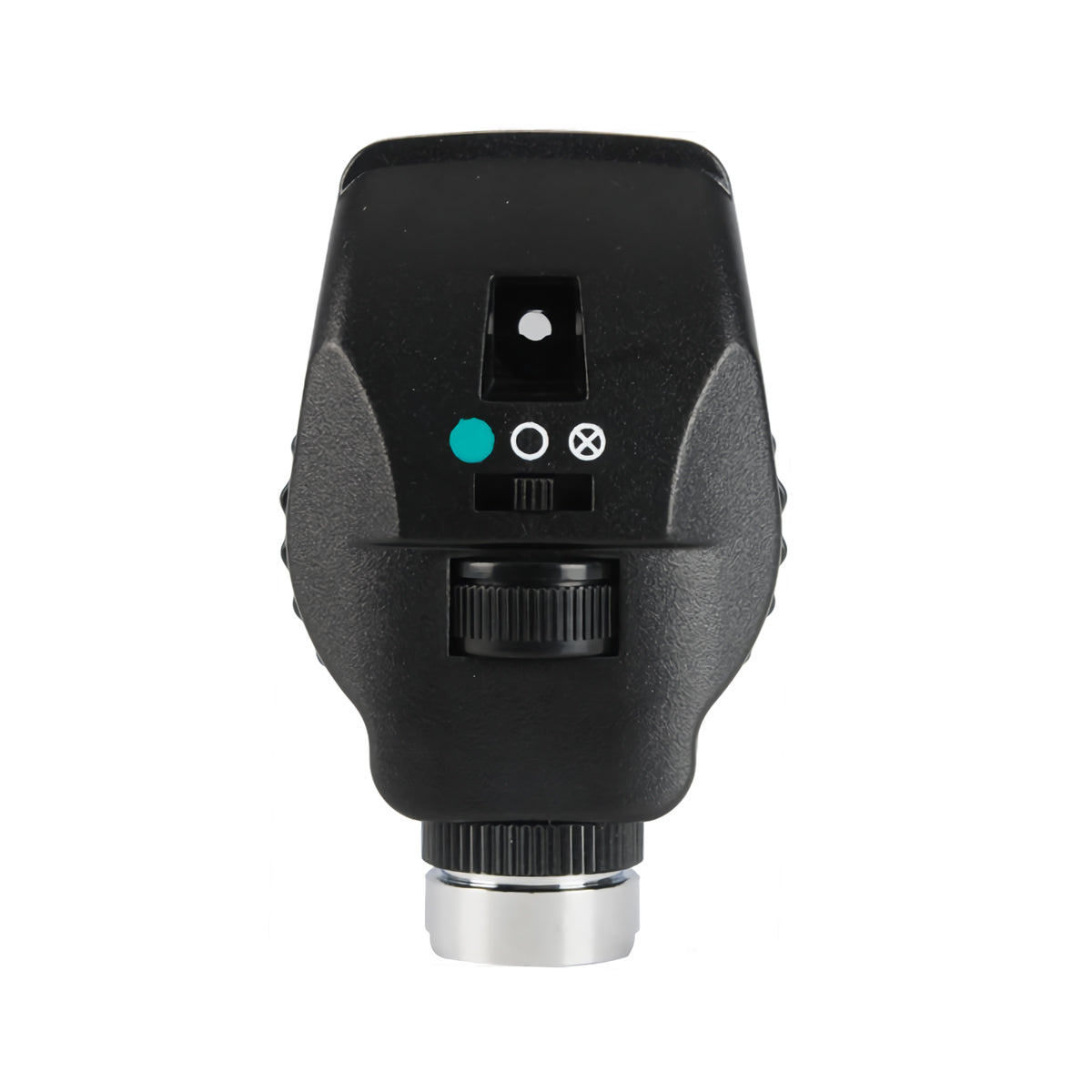

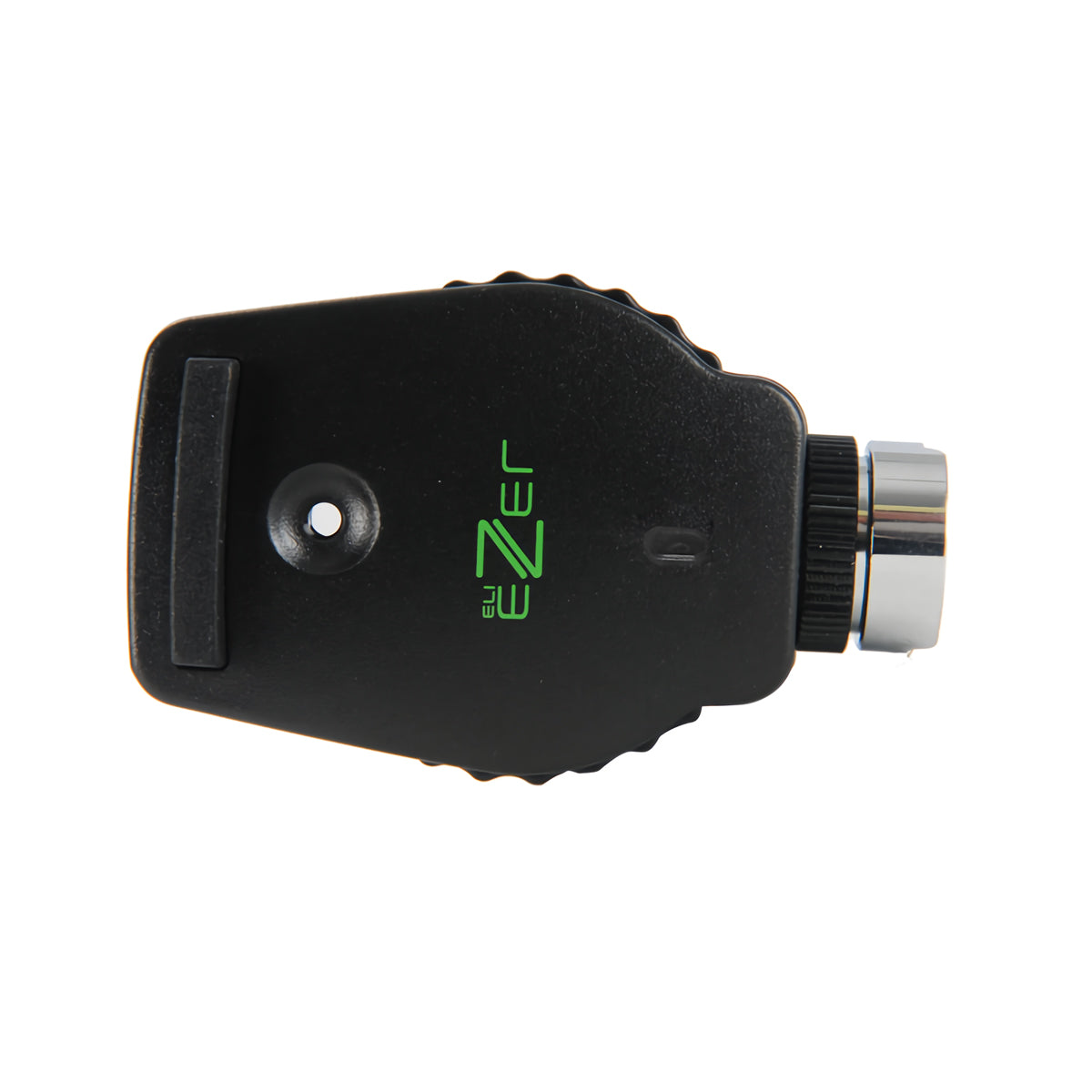

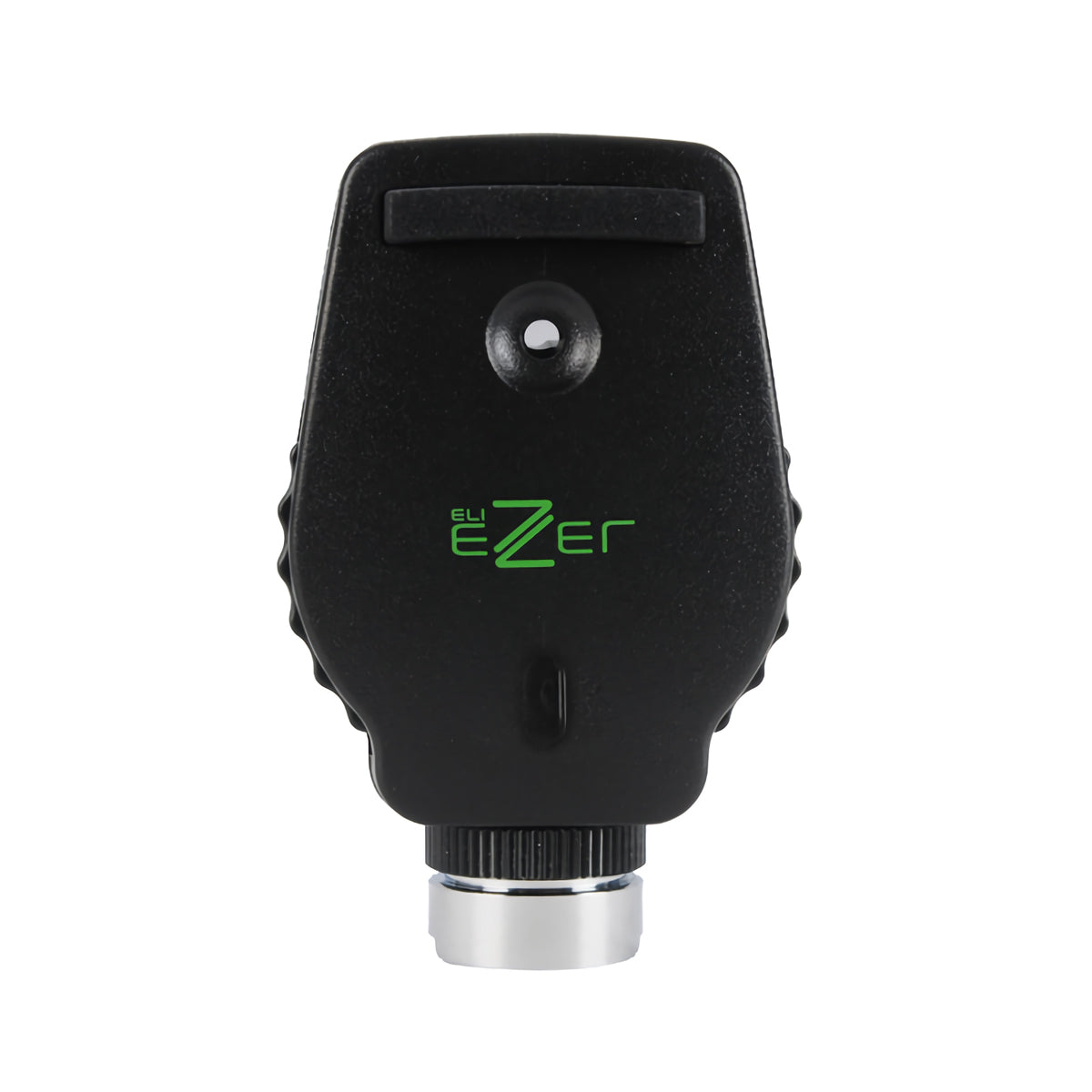

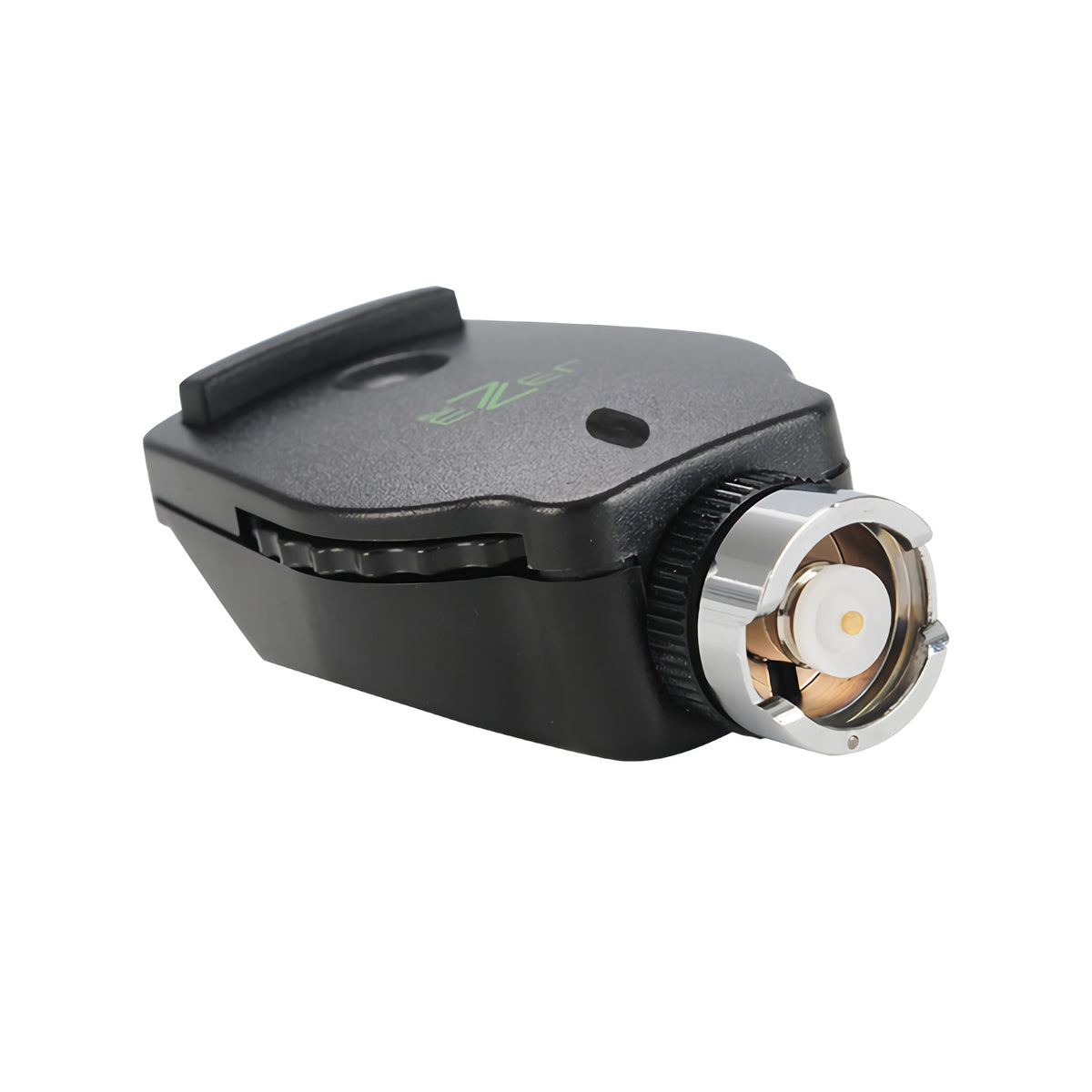

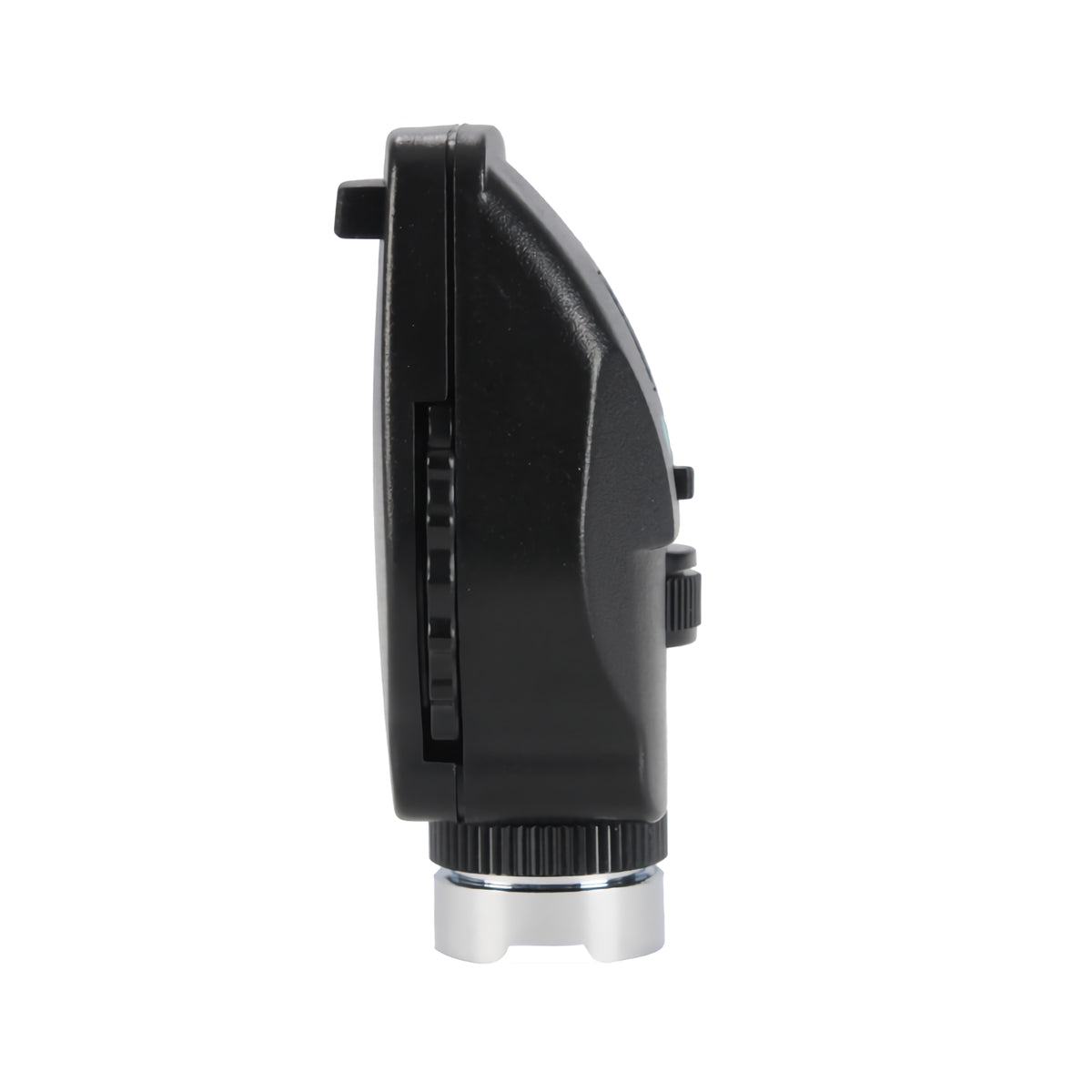

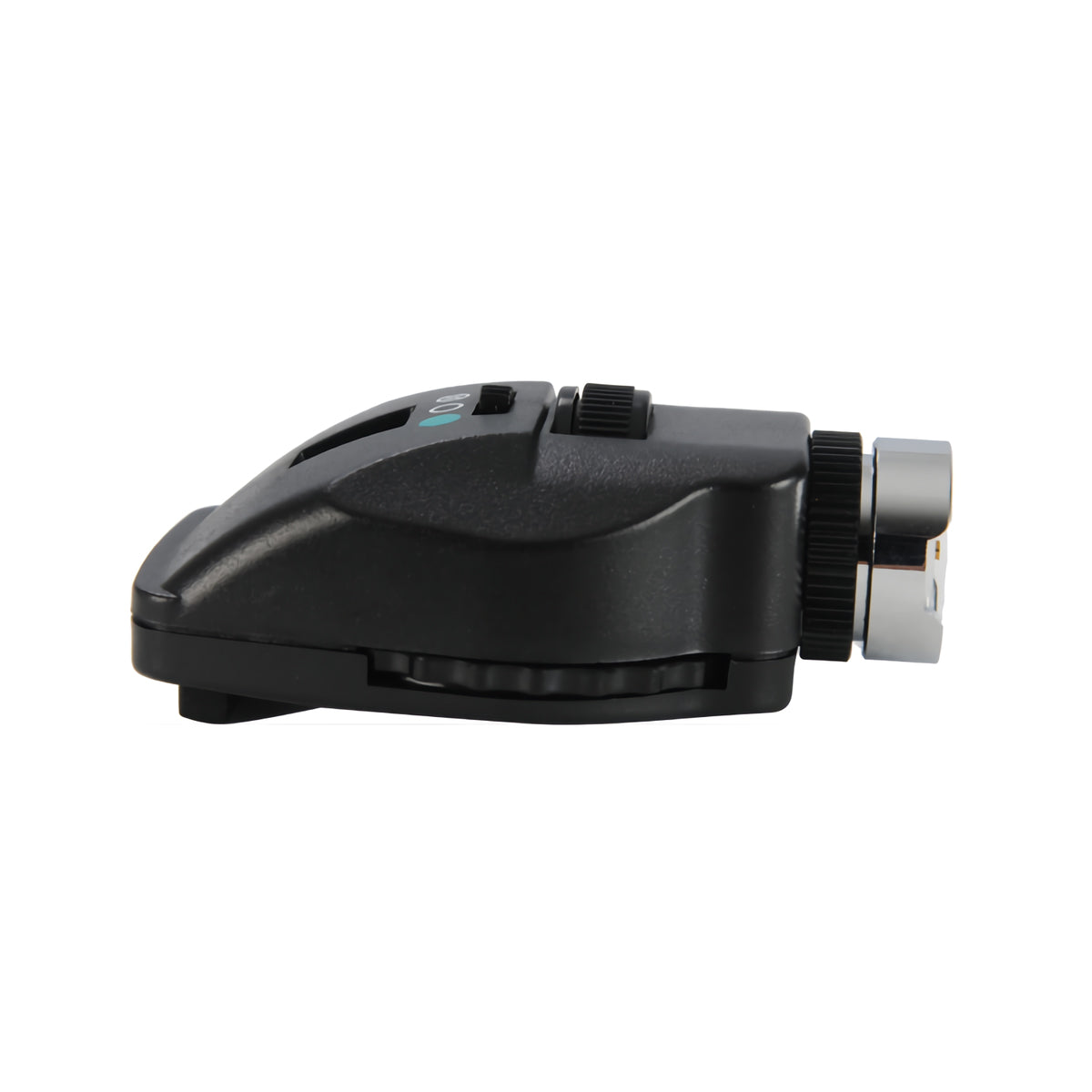

EZ-OPH-3600 Coaxial Ophthalmoscope

EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
Click image to zoom
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope
EZ-OPH-3600 Coaxial Ophthalmoscope

EZ-OPH-3600 Coaxial Ophthalmoscope

login to view price
SKU: EZ-OPH-3600

Type
(Not available)

Short Description


Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Coaxial Optics
The coaxial optics system allows for more thorough examinations and diagnostics because it directs the axis of light to match the axis of vision on the retina, thus eliminating possible shadows that may be cast. Through the curved filament lamp a high precision and optical alignment is achieved, allowing an easier entry into the interior of the eye without the need for dilated pupils or any eye disorder.

18 unique combinations of aperture and filter
The EZ-OPH-3600 ophthalmoscope, being a high-end device, contains 18 extraordinary combinations of aperture and filter, achieving greater versatility when performing the exam. With this number of filters you can get better visibility to enter with optimal light levels in small pupils and without dilating both in healthy eyes and eyes with cataracts.

This portable device within its essential diagnostic filters include: Cobalt Blue, Linear Cross-Polarization and Red-Free.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Micro Apertura: Allows easy entry into very small, undilated pupils.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Small Aperture: Provides easy view of the fundus through an undilated pupil.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Large Aperture: Standard aperture for dilated pupil and general examination of the eye.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Fixation Aperture: it allows measuring eccentric fixation or locating lesions in the eye thanks to its graduated reticle.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Slit Aperture: helpful in determining various elevations of lesions, particularly tumors and edematous discs.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
 Cobalt Blue: Blue filter used with fluorescein dye permits easy viewing of small lesions, abrasions, and foreign objects.
Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer Red-Free Filter: Excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers.

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
3.5V/ 2.7W Halogen Light
The EZ-OPH-3600 Ophthalmoscope includes an incredible 3.5V halogen lamp that provides consistent, long-lasting illumination with a light output that allows the true color of the tissue to be seen. This type of device allows the specialist to select between 3.5V halogen light or 2.7W LED light, depending on their preference.

It can be part of the following kits:

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
Kit 1 Included: EZ-OPH-3600, EZ-RET-2600, EZ-HND-2600, EZ-CHG-3600, EZ-OPH/RET-CASE

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
Kit 2 Included: EZ-OPH-3600, EZ-RET-2600, EZ-HND-700 (2)

Pro Lead Coaxial Ophthalmoscope ez-oph-3600 ezer
Kit 3 Included: EZ-OPH-3600 (Lamp Type: Halogen), EZ-RET-2600 (Lamp Type: Halogen), EZ-WTC-5200 DC
Paquete 4 Included: EZ-OPH-3600 (Lamp Type: LED), EZ-RET-2600 (Lamp Type: LED), EZ-WTC-5200 DC
Optical Specifications
Diopter -30D~+38D
(68 lenses in single-diopter steps)
Aperture Large Aperture, Small Aperture, Micro Aperture, Slit Aperture, Cobalt Blue Aperture & Fixation Aperture.
Filter Red free filter / Polarizing filter
Type of bulb 3.5 V / 2.7 W
Operation Mode Intermittent, On-time should not exceed 2 mins with Off-time not less than 5 mins.
Environment Requirements
Operation Environment Temperature
Relative Humidity
Atmospheric Pressure 		+10 °C - +35 °C
30% - 75%
700 hPa - 1060 hPa
Shipping Common Conveyance
Storage Temperature
Rel. humidity
Air Pressure		 -40 °C - +55 °C
10% - 90%
500 hPa - 1060 hPa
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: EZ-OPH-3600

The EZ-OPH-3600 3.5V Pro Coaxial handheld ophthalmoscope is easy to use. It features the latest technology for more accurate results and an ergonomic, easy-to-grip design. As a professional in healthcare, having the best instruments is critical. Therefore, Ezer has created a line of optical instruments that allow us to raise the quality of service for specialists. The EZ-OPH-3600 ophthalmoscope is an excellent example to highlight the quality of Ezer's product range. This small portable model uses a combination of 68 focusing lenses, has a concave mirror and a curved filament lamp for a much wider field of view, making it a superior model compared to many other ophthalmoscopes on the market. Thanks to its first-class technology and its 18 unique combinations of aperture and filter, the specialist will be able to have an easy view of the pupils without dilating, being able to perform a much more thorough examination with an accurate resolution and a superior quality, thus improving the care received by the patient.
